Diaphragm Compressor: Working Principle, Advantages & Applications
Learn how diaphragm compressors deliver oil-free, leak-free gas compression for hydrogen, nitrogen, and oxygen systems. Explore applications and benefits.
Diaphragm Compressor Working Principle and Key Advantages
In high-purity gas applications, the diaphragm compressor is widely recognized for its oil-free and leak-free compression.
Compared with reciprocating gas compressors, it ensures complete separation between gas and lubricating systems, making it ideal for critical industries.
Structure of a Diaphragm Compressor

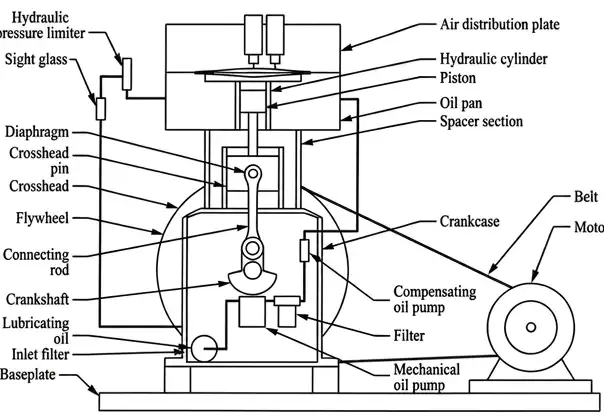

Main components include:
- Hydraulic system
- Diaphragm assembly
- Gas valve system
- Cooling system
👉 Key design:
Flexible diaphragm isolates gas from hydraulic oil
Working Principle
The process includes:
- Suction
- Initial Compression
- Final Compression
- Discharge
👉 Gas is compressed without any contamination
Key Advantages
Oil-Free Compression
Leak-Free Design
Ideal for:
- Hydrogen
- Helium
- Toxic gases
High Pressure Capability
- Standard: up to 50 MPa
- Custom: 100 MPa+
Flexible Capacity Control
- 10%–100% adjustment
- Energy efficient
Low Maintenance
- Less wear
- Modular design
Long Service Life
- Diaphragm: 5+ years
- Machine: 15+ years
Applications
- Industrial gases (N₂, O₂, Ar)
- Hydrogen energy
- Chemical industry
- Medical systems
- Semiconductor gases
Conclusion
Diaphragm compressors are the best solution for:
✔ High purity
✔ High pressure
✔ Zero leakage
