Custom Reciprocating Gas Compressors
up to 1000bar – Engineered for Your Process
WEISIDUN provides engineering, design, and manufacturing of tailored gas compression systems for hundreds of industrial applications.
- Natural gas
- Hydrogen
- Biogas
- Oilfield gas
- Associated gas
- Wellhead gas
- Air
- Ammonia
- Carbon dioxide (CO₂)
- LPG
- Nitrogen (booster)

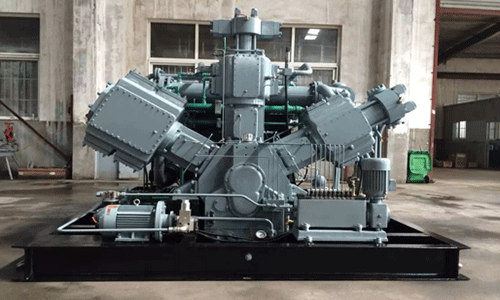

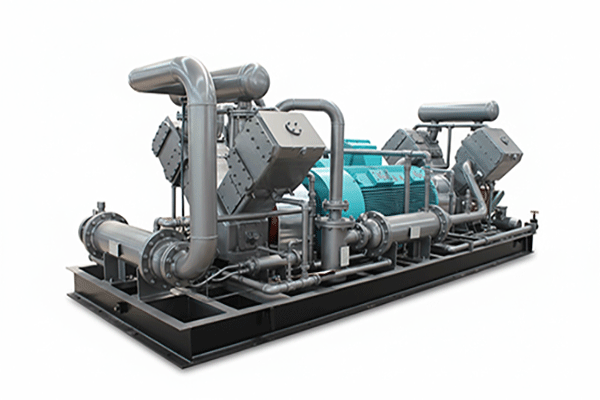

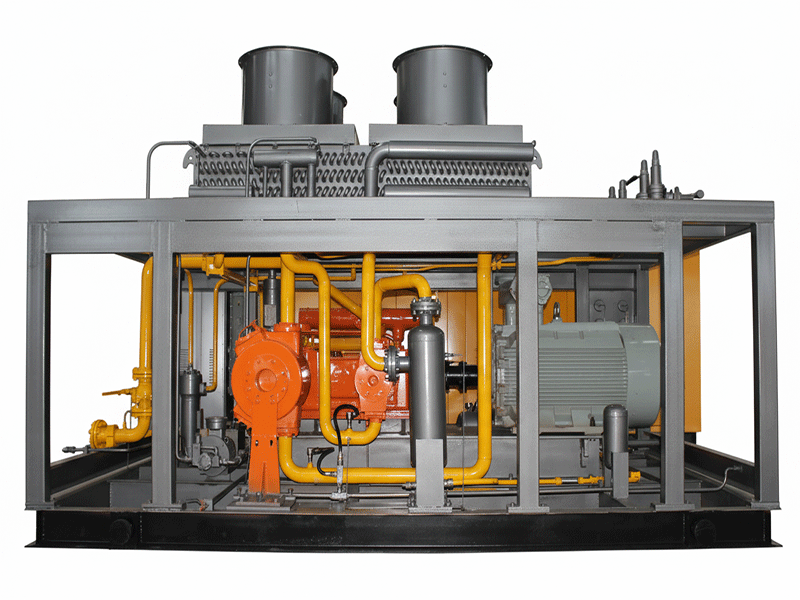

Reciprocating Piston Compressor for Oil & Gas, Energy & Environment
Reciprocating gas compressor for high pressure applications
Why Us
Our Commitment to Excellence
Expertise & Experience – Custom High & Medium Pressure Reciprocating gas compressor
Taizhou WeiSiDun Power Technology Co., Ltd. is a professional manufacturer specializing in R&D, production, and sales of medium and high pressure Reciprocating gas compressors and on-site nitrogen generators.
Our core product range includes:
- PSA nitrogen generator skids (adsorption type)
- Membrane nitrogen generator skids
- Medium & high pressure compressors (1–100 m³/min, 0.7–70 MPa)
- CNG compressors for refueling stations
- PET oil-free blowing compressors
- Large-displacement screw-piston series medium/high pressure compressors
- Special gas compressors for hydrogen, nitrogen, helium, argon, oxygen, and other industrial gases
Key capabilities & applications:
- Discharge pressure: 0.7 MPa – 70 MPa
- Discharge capacity: 1 m³/min – 100 m³/min
- Customized designs available for specific gas types and operating conditions
- Utilizing advanced domestic and international technologies for high-pressure compression
Main application industries:
Oilfield gas lift, drilling, marine exploration, CNG refueling stations, biogas utilization, coalbed methane & shale gas extraction, PET blow molding, hydropower stations, leak detection, pipeline purging, shipbuilding, and military industries.
High-Pressure Nitrogen Injection & On‑Site Generation Systems
Engineered for oilfields, pipeline services, and industrial gas applications — from well stimulation to high‑purity blanketing.

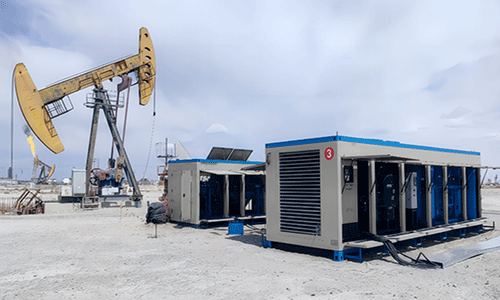

Nitrogen Injection Compressor
| Intake Pressure | Atmospheric |
| Discharge Pressure | 15 / 25 / 35 / 50 MPa |
| Flow Rate (Nm³/h) | 300 / 600 / 900 / 1200 / 1500 |
| Drive Mode | Electric / Diesel / Gas Engine |
| Cooling | Air‑cooled |
| Power Range | 300 – 880 kW |
- Oilfield gas injection & pipeline purging
- Nitrogen‑induced blowout & foam displacement
- Skid‑mounted, ready for harsh environments

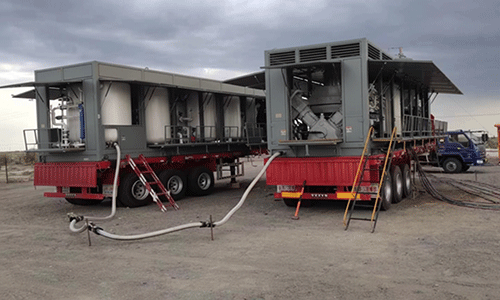

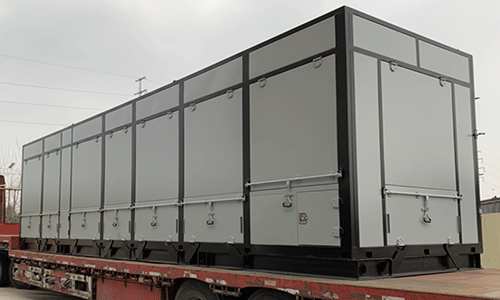

Adsorption N₂ System
| Nitrogen Flow | 1200 Nm³/h |
| Discharge Pressure | 35 MPa |
| Nitrogen Purity | 99% |
- Frequency‑adjustable drive
- Air cooling · Containerized & movable
- Automatic operation with remote monitoring
- Ideal for offshore & remote oilfields

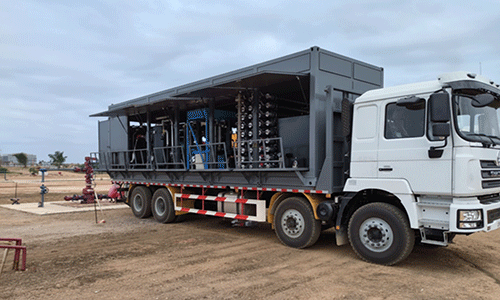

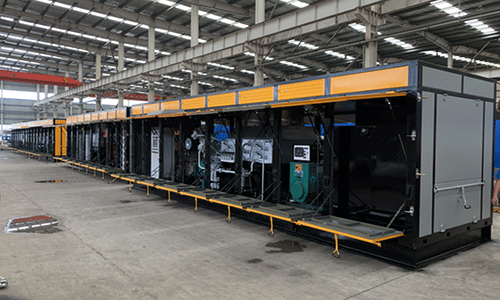

Membrane N₂ System
| Nitrogen Flow | 1200 Nm³/h |
| Discharge Pressure | 50 MPa |
| Nitrogen Purity | 95% |
- Diesel engine drive – no external power required
- Air cooling / Skid‑mounted & containerized
- Fully mobile for wellsite relocation
- Remote monitoring & autonomous operation
Heavy‑Duty Reciprocating & Screw+Piston Units
Engineered for mining, oil & gas, chemical, steel, and industrial applications — reliable high‑pressure air up to 50 MPa.

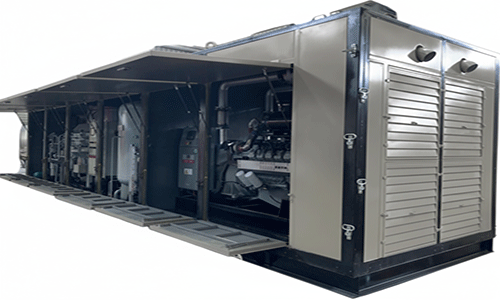

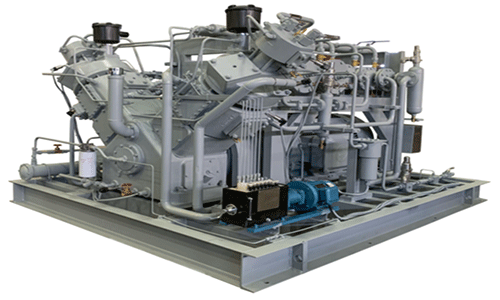

High Pressure Air Compressor Series
| Screw‑piston series | Up to 4200 Nm³/h · 50 MPa |
| Piston type | Up to 600 Nm³/h · 42 MPa |
|---|---|
| Intake | Atmospheric / pressurized |
| Lubrication | Oiled / Oil‑free (piston) |
| Drive | Diesel / electric |
| Cooling | Air / water / mixed |
| Installation | Fixed / mobile / skid / container |
- Mining, oil & gas, chemical, steel, machinery
- High reliability for continuous operation
- Customizable to extreme environments
Screw+Reciprocating Combo
| Intake Pressure | 0 MPa (atm) |
| Discharge Pressure | 50 MPa |
|---|---|
| Flow | 1200 m³/h (20 m³/min) |
| Power | 132kW + 250kW |
- Motor VFD, adjustable flow, air cooled
- Integrated skid, containerized – fixed or mobile
- Automatic operation & remote monitoring

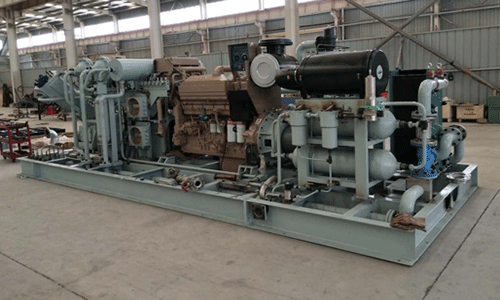

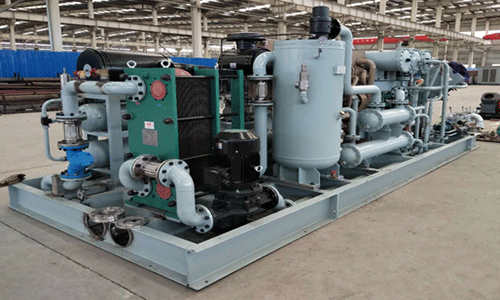

Diesel‑Driven Skid Unit
| Intake Pressure | 0 MPa |
| Discharge Pressure | 22 MPa |
|---|---|
| Flow | 1500 m³/h (25 m³/min) |
| Power | 522 kW (Diesel engine) |
- Diesel engine drive – one engine powers two stages
- Integral skid, marine standard
- Designed for geological exploration & remote sites
Pure Piston High Pressure
| Intake Pressure | 0 MPa |
| Discharge Pressure | 35 MPa |
|---|---|
| Flow | 300 m³/h |
| Power | 90 kW |
- Electric drive, water‑cooled
- Oil‑lubricated for long mechanical life
- High efficiency for continuous operation
PET Series · Oil‑Free Reciprocating & Screw+Piston
Pure oil‑free compressed air for blow molding, pharmaceutical, food, and sensitive industrial processes.

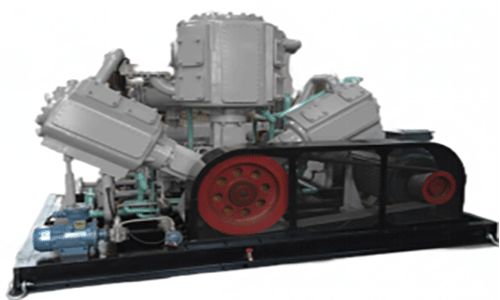

PET Series Technical Overview
- Blow molding & oil‑free air applications
- High purity, zero contamination
- Fixed type installation, high reliability
Screw+Piston Combo
- 100% oil‑free
- High flow for industrial blow molding
- Electric drive, air/water cooling optional
Reciprocating W Type
- Oil‑free reciprocating design
- Compact W‑configuration
- Suitable for continuous PET production
Reciprocating M Type
- Oil‑free, balanced M‑type configuration
- High efficiency and low vibration
- Ideal for large‑scale blow molding lines
Natural Gas · Associated Gas · Coalbed Methane
High‑performance reciprocating compressors for associated gas recovery, coal seam gas, shale gas, biogas, and gas‑driven applications.
Gas Recovery Series
| Exhaust volume | Max 3600 Nm³/h |
| Exhaust pressure | Max 35 MPa |
| Lubrication | Oiled / Oil‑free |
| Drive | Electric / Gas engine |
| Cooling | Air cooling |
| Installation | Fixed / Mobile / Skid / Container |
- Associated gas recovery (oil fields)
- Coal seam gas, shale gas, biogas
- Gas‑driven applications
Natural Gas Compressor
| Intake Pressure | 0 MPa (atm) |
| Discharge Pressure | 35 MPa |
| Flow | 1200 m³/h |
| Power | 90 kW |
- 100% oil‑free
- Air‑cooled, low vibration & noise
- Integrated skid, containerized format

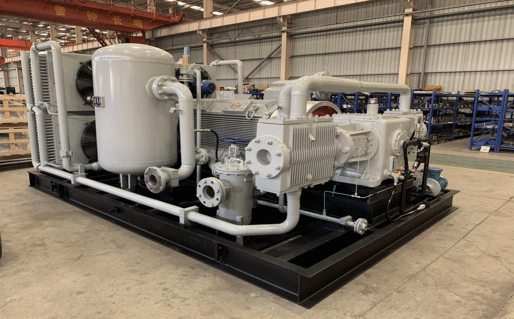

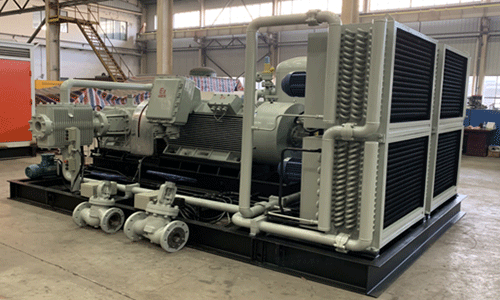

Oilfield Associated Gas Compressor
| Intake Pressure | 2–3 MPa |
| Discharge Pressure | 4.2 MPa |
| Flow | 7 m³/min |
| Power | 315 kW |
- Oil‑free
- Air‑cooled, low vibration & noise
- Designed for harsh oilfield environments

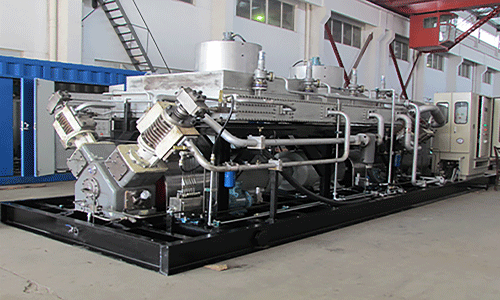

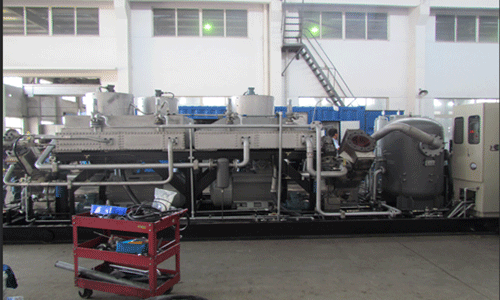

Coalbed Methane Compressor
| Intake Pressure | 0.02–0.07 MPa |
| Discharge Pressure | 21 MPa |
| Flow | 9.5 m³/min |
| Power | 260 kW |
- Air‑cooled
- Low vibration design
- Ideal for low‑pressure CBM wells
Reciprocating Compressors for Hydrogen, Helium, Oxygen, Nitrogen & More
Engineered for petrochemical, coal chemical, research, and general industry applications — high purity, high reliability.

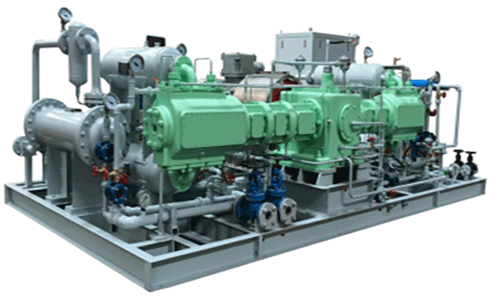

Process Gas Series
- Applicable gases: Hydrogen, oxygen, helium, nitrogen, ammonia, carbon dioxide, methane, petrochemical liquefied gas
- Petrochemical, coal chemical, research, general industry

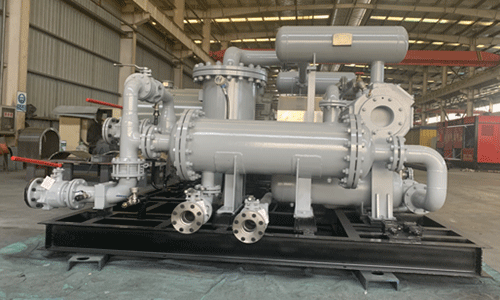

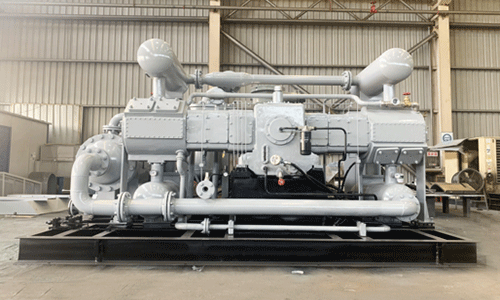

Hydrogen Compressor
- Oil‑free

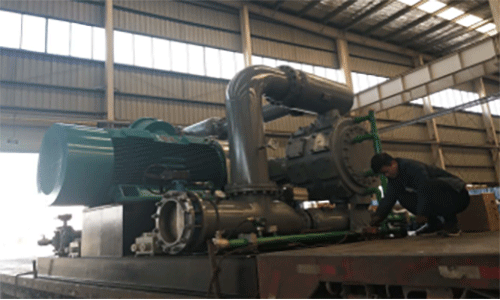

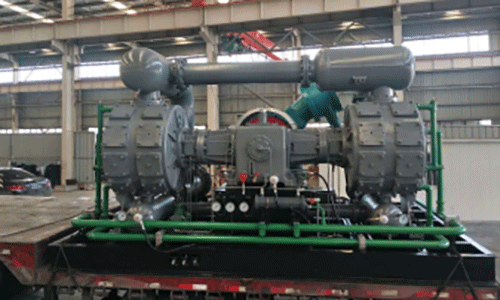

Desorption Gas Compressor
- Oil‑free

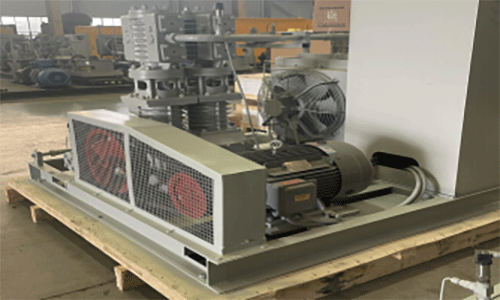

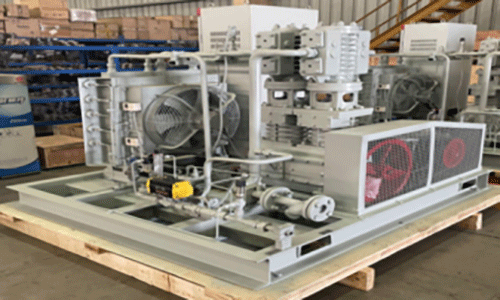

Nitrogen Compressor
- Oil‑free

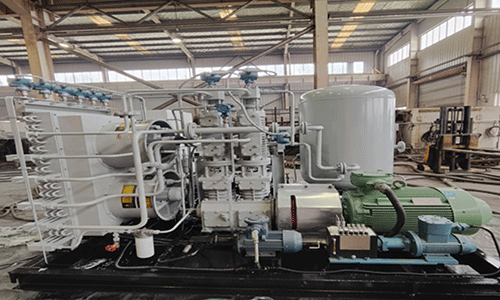

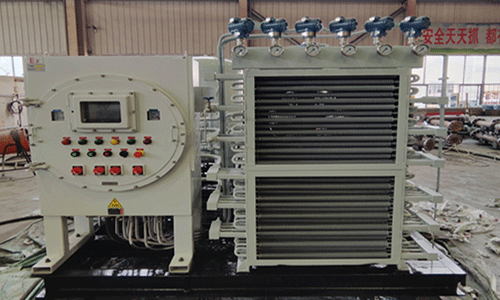

Helium Compressor
- Low leakage, low vibration, low noise

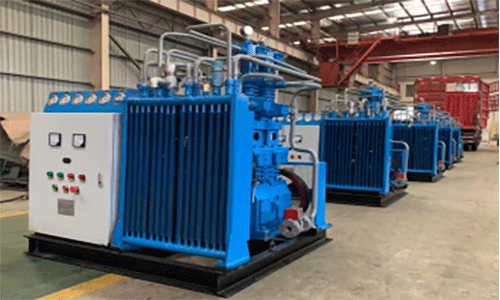

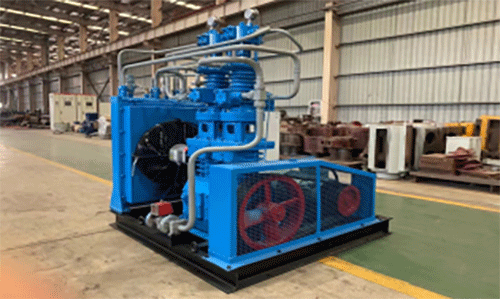

Oxygen Compressor
- Oil‑free
Natural Gas (CNG) Refueling Station Compressor Series
Reliable reciprocating compressors for mother stations, standard stations, substations and home refueling – up to 25 MPa.

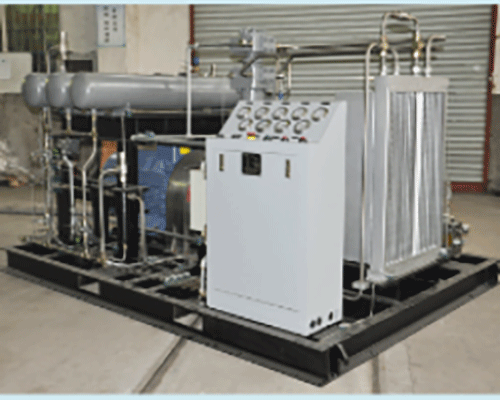

Mother Station CNG
- For CNG tank trucks & high‑volume refueling
- Electric drive, skid or containerized

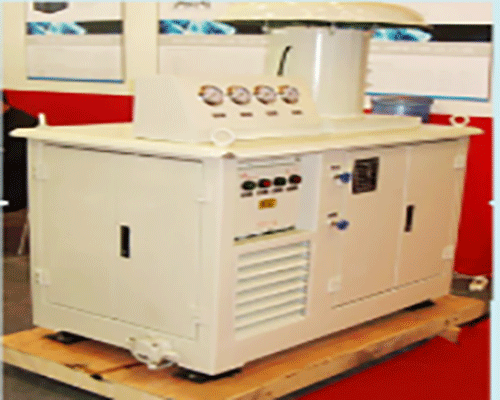

Standard CNG Station
- For conventional CNG filling stations
- Reliable control panel and gauges

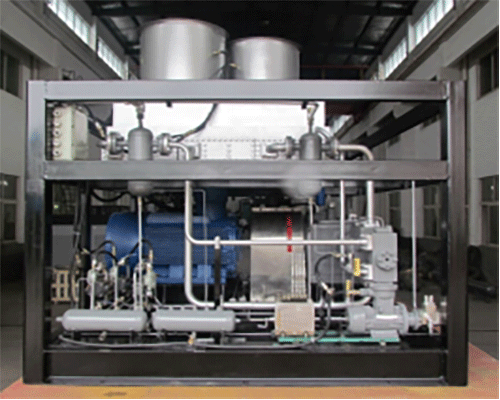

Substation CNG
- Compact footprint for satellite stations
- Control panel and gauge integration

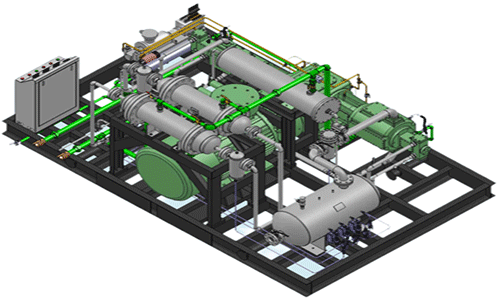

Home CNG Refueling
- For home vehicle refueling
- Compact, quiet, easy operation
Tell your specific requipment immediately.
Contact us today to schedule a consultation or to learn more about our services.
Solutions & Key Applications
We have accumulated extensive practical experience across multiple industries, including gas energy, petrochemicals, instrumentation & air separation, metallurgy & mining, and oilfield gas lift. We provide complete, customized gas compression and nitrogen generation solutions for each sector.

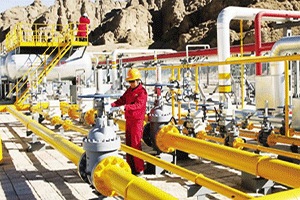

Gas Energy
Natural gas compressors widely used in extraction, transmission, CNG filling, mother/daughter stations, and LNG BOG recovery.
- Gas extraction, transmission & storage
- Associated gas recovery (oil wells)
- CNG cylinder filling & refueling stations
- LNG BOG recovery & repressurization

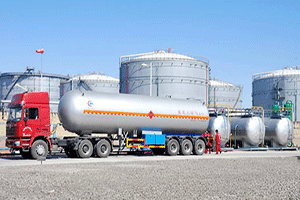

Petrochemical
Process compressors for oil refining, hydrogenation units, ammonia synthesis, and methanol plants.
- Hydrogen compressors (catalytic cracking / tar hydrogenation)
- Ammonia compressors & syngas compressors
- Carbon dioxide compressors for methanol
- Fine chemical compression processes

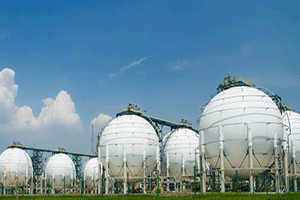

Instrument Air Separation
Electric motor–driven compressors for pneumatic instruments, PSA nitrogen/oxygen generators, and membrane separation systems.
- Air supply for pneumatic instrumentation
- PSA nitrogen / oxygen generators
- Membrane separation (air / nitrogen / oxygen boosters)
- High-purity process air

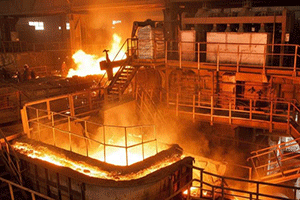

Metallurgical & Mining
Robust gas compressors for heavy industrial environments, mineral processing, and metal production.
- Ore flotation and conveying
- Blast furnace air supply
- Mine ventilation and dewatering
- Metal refining processes

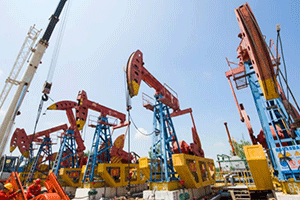

Oilfield Gas Lift
Support for oil & gas extraction operations, including nitrogen injection, gas lift, and thermal recovery.
- Air / nitrogen injection & gas lift
- Nitrogen foaming & assisted steam injection
- Pipeline purging & well pressure washing
- Heat insulation & drainage assistance

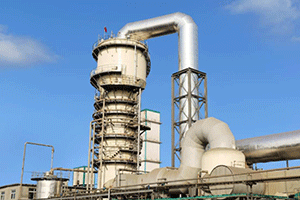

Other Fields
Specialized gas compression for environmental protection, biogas power, and refrigerant manufacturing.
- Ammonia / biogas for desulfurization & denitrification
- Thermal power plants & biogas power plants
- Freon compressors for refrigerant manufacturers
- Specialty gas compression systems
FAQ – Common Questions About Industrial Gas Compressors
Expert answers to frequent technical inquiries, helping you optimize performance and reliability.
Excessive oil consumption is usually caused by:
- Oil too thin – due to high operating temperature or incorrect viscosity grade
- Oil pressure too high
- Excessive piston-to-cylinder clearance
- Cylinder out of round or worn
- Oil leakage from cylinder – worn piston rings, rings stuck in grooves, or wrong ring type installed
- Excessive crankshaft or connecting rod bearing clearance
- Crankcase overheating or poor ventilation
- Splash lubrication rod too long or oil level too high
Abnormal exhaust temperature means it exceeds the design value. The main factors include:
- High intake air temperature – caused by low intercooler efficiency or scale buildup
- High pressure ratio – due to valve leakage or piston ring leakage
- Insufficient cooling water (for water‑cooled models) or low water flow
- Theoretical causes: intake air temperature, pressure ratio, and compression index (for air, K=1.4).
If the compressor cannot deliver enough gas volume at rated pressure, the discharge pressure will drop. Possible causes:
- Compressor too small for the required flow – replace with a larger unit
- Inlet valve leakage
- Piston ring wear causing internal leakage
- Pressure between stages abnormal – usually due to valve or piston ring leakage
Overheating at moving parts accelerates wear and can cause major failure. Common reasons:
For bearings:
- Poor fit between bearing and shaft (small contact area)
- Bearing misalignment or bent crankshaft
- Low oil viscosity, blocked oil passage, or oil pump failure
- Improper installation – unlevel base, misaligned main shaft and motor shaft
For crosshead/slide plate or packing/piston rod:
- Insufficient lubrication or excessive friction
Operators can often identify the source of abnormal noise:
Knocking inside cylinder:
- Piston-to-cylinder head clearance too small
- Piston rod nut loose or disconnected
- Piston end threaded plug damaged
- Metal fragments or water in cylinder
Knocking in crankcase:
- Loose or broken bolts on crankshaft, connecting rod, or crosshead
- Worn shaft diameter with excessive clearance
- Excessive clearance between crosshead pin and bushing
Knocking in valve chamber:
- Broken exhaust valve plate
- Soft or damaged valve spring
- Incorrect load regulator setting
Reciprocating Compressors · In Action
Explore our range of reciprocating compressors deployed across gas & oil fields, CNG infrastructure, industrial gas, and more.
Hover over each card to browse real project images.
