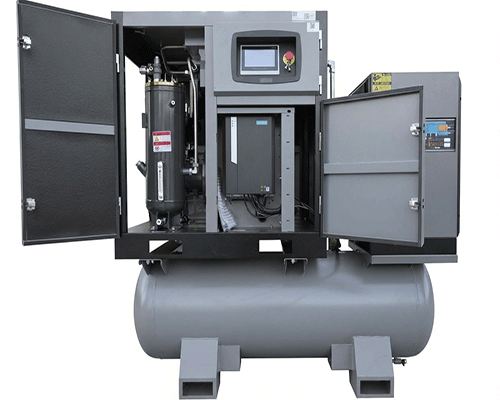

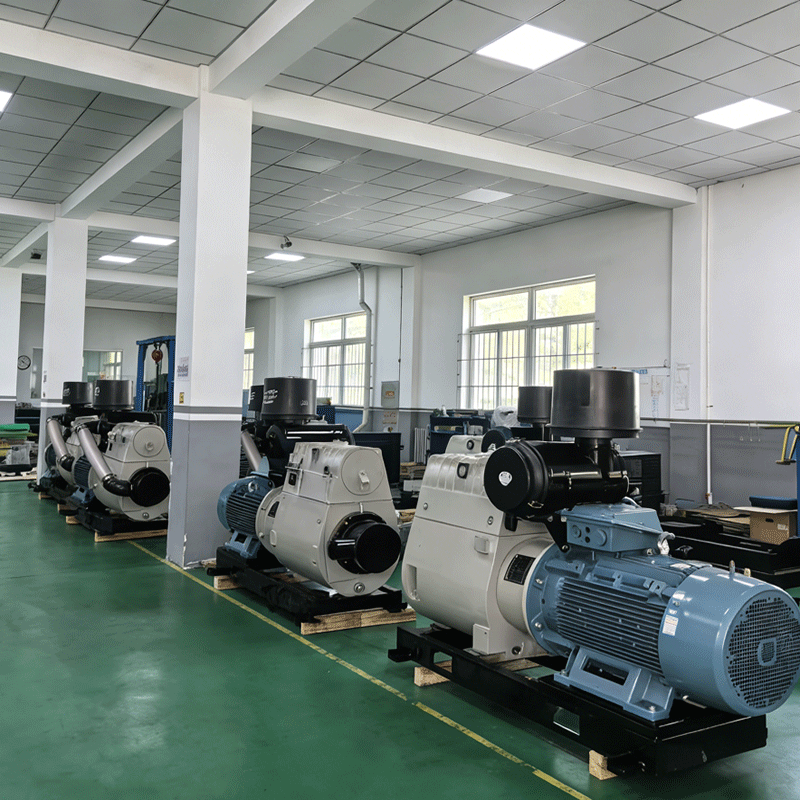

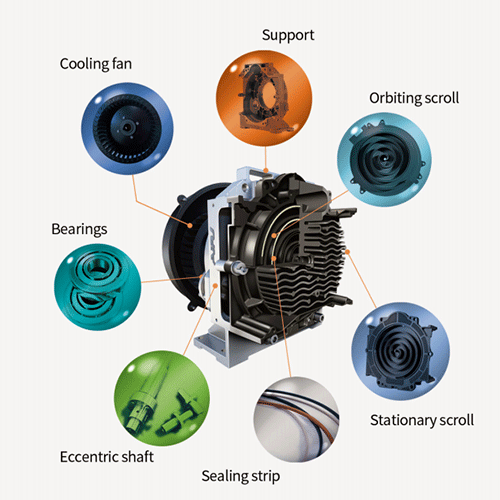

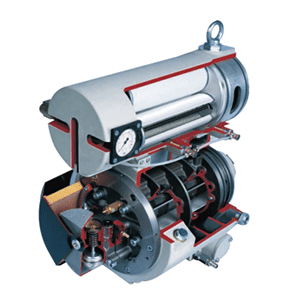

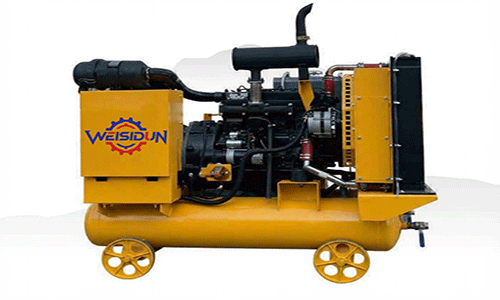

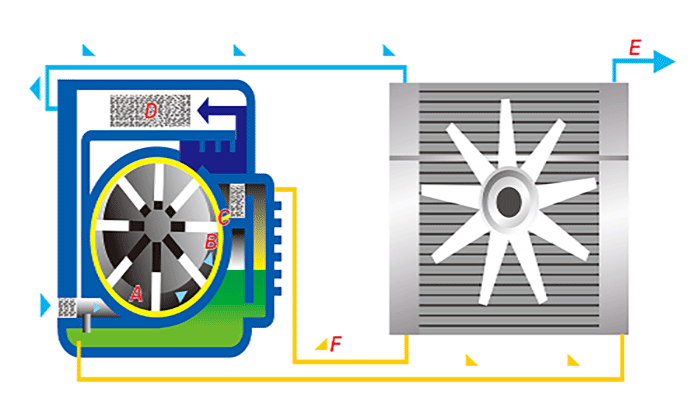

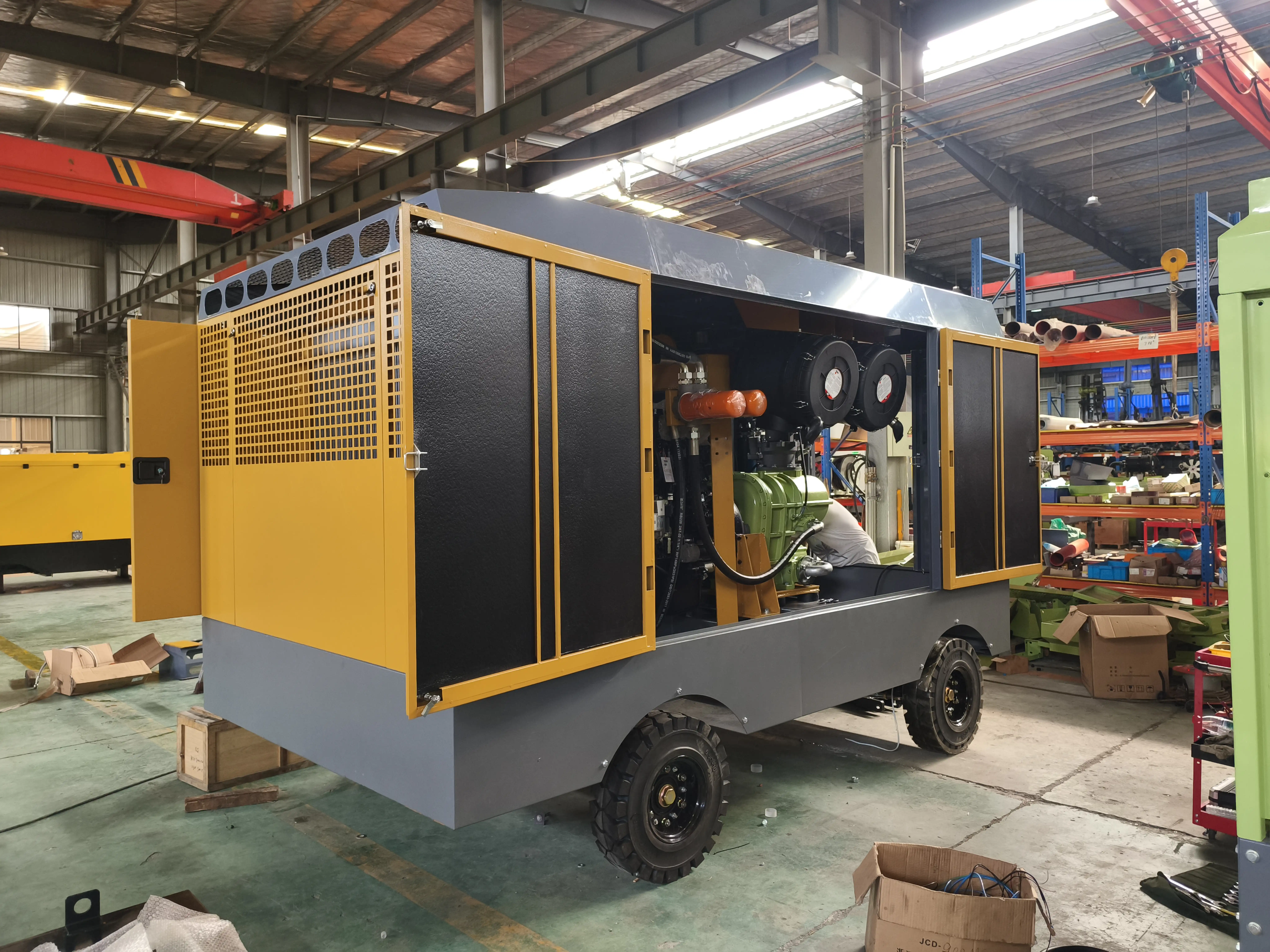

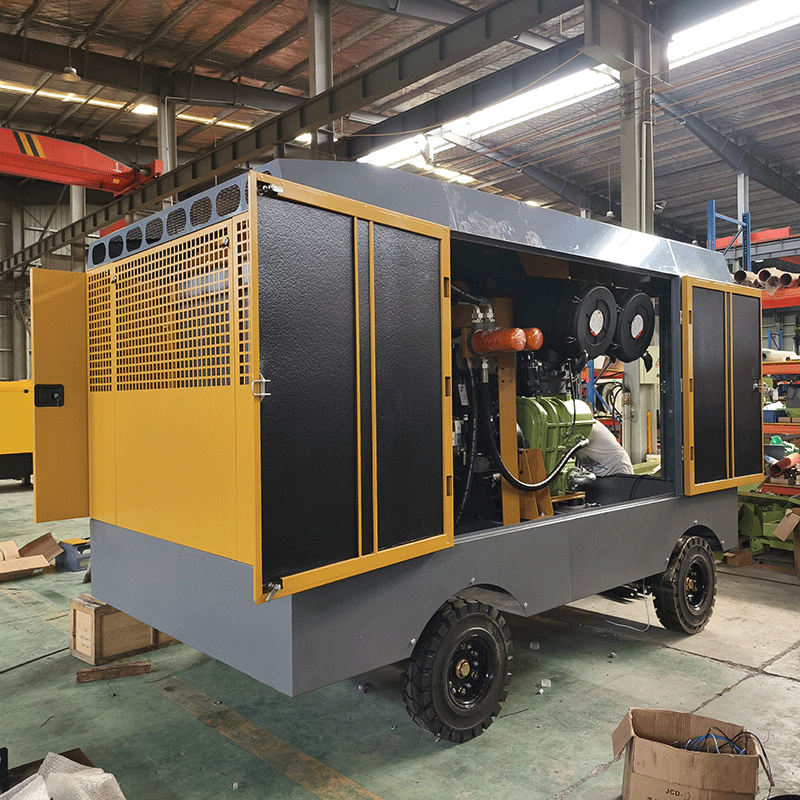

Start with required free air delivery at the working pressure, then confirm air quality, duty cycle, power supply and site conditions. Size the receiver, dryer, filters and piping for the complete system rather than selecting by motor power alone. Avoid unnecessary discharge pressure because higher pressure generally raises energy use; the exact impact depends on the compressor and operating point, so compare specific power at the required pressure.

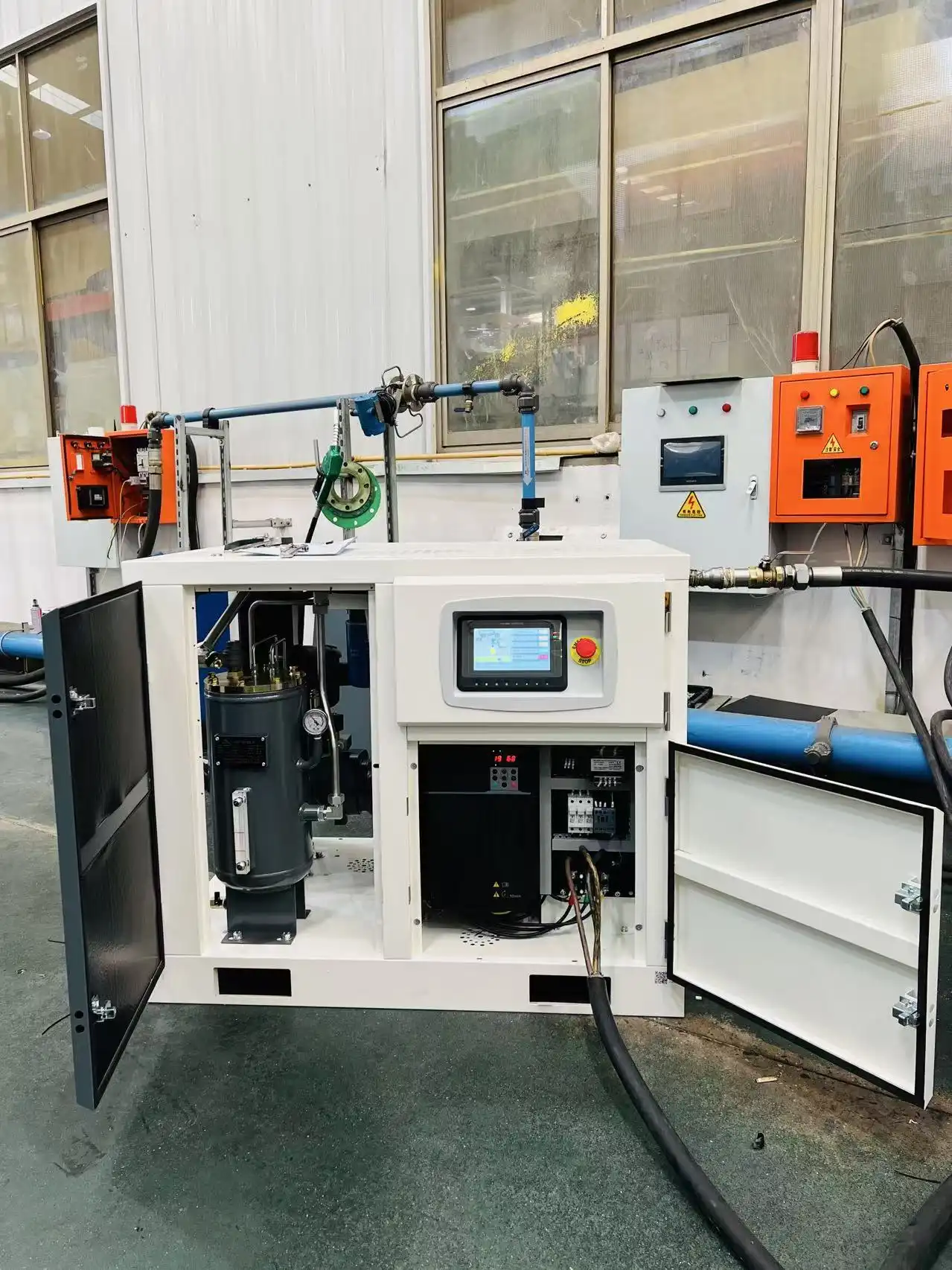

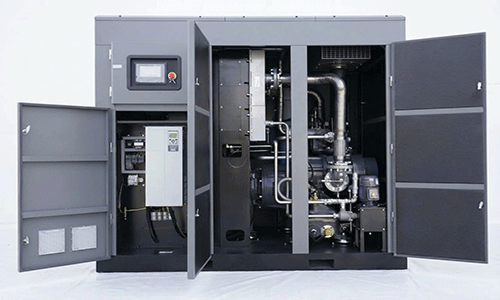

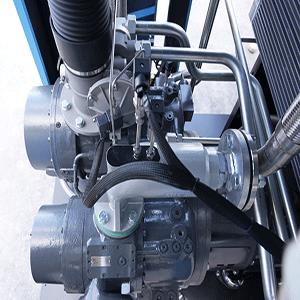

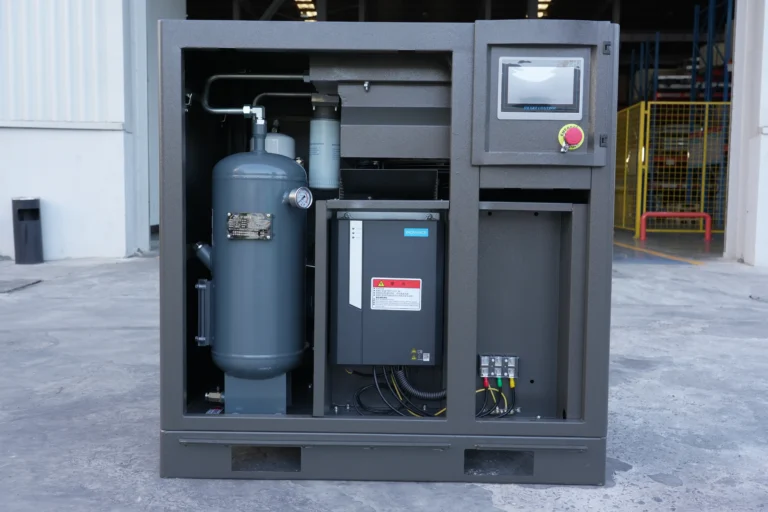

Choose PM VSD when demand varies significantly or the machine operates for long periods across a broad load range. A fixed-speed compressor can be suitable when demand is stable and the machine commonly runs near its efficient loaded point. Check the actual load profile, minimum stable output, pressure band and annual operating hours before deciding.

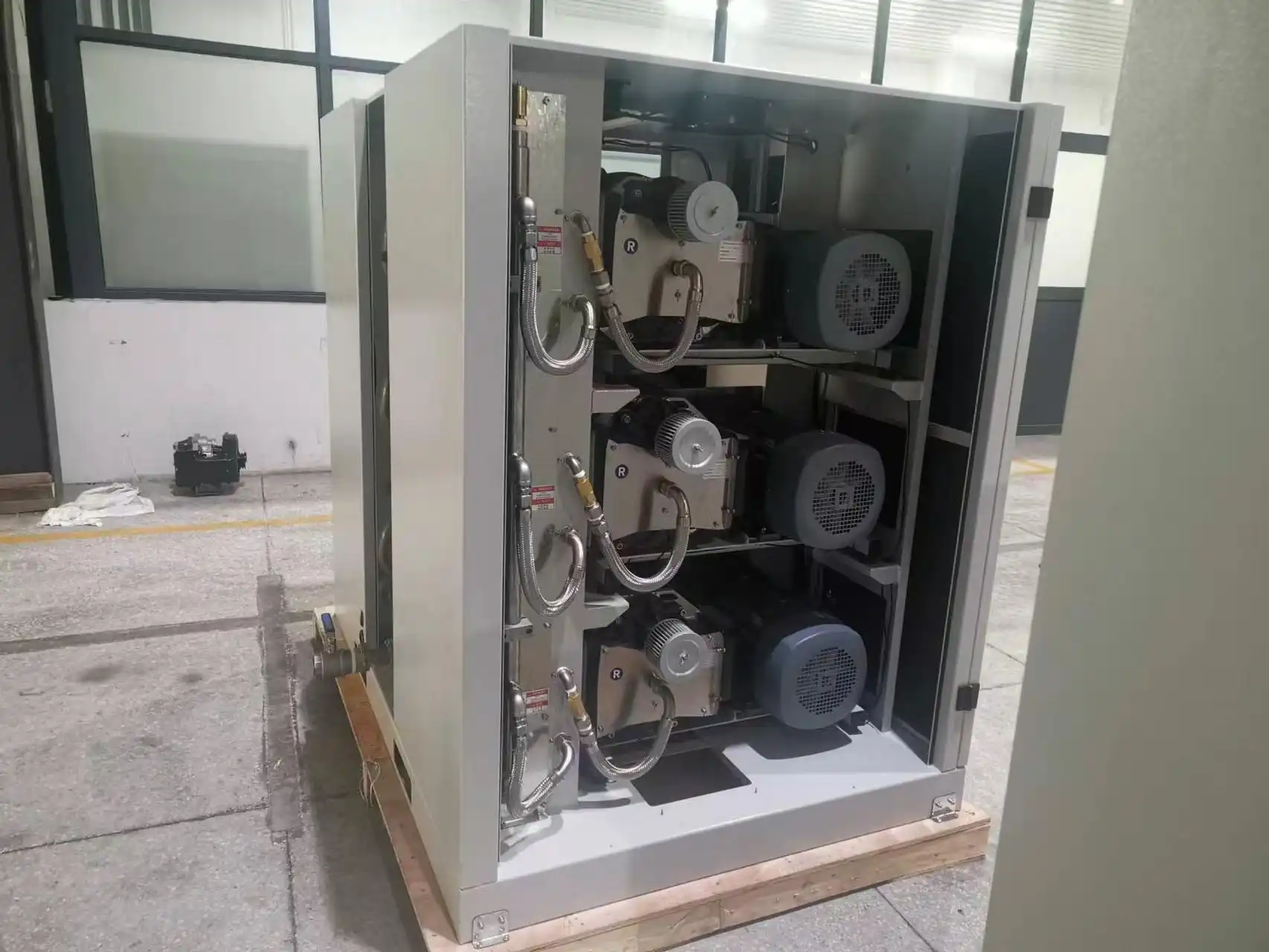

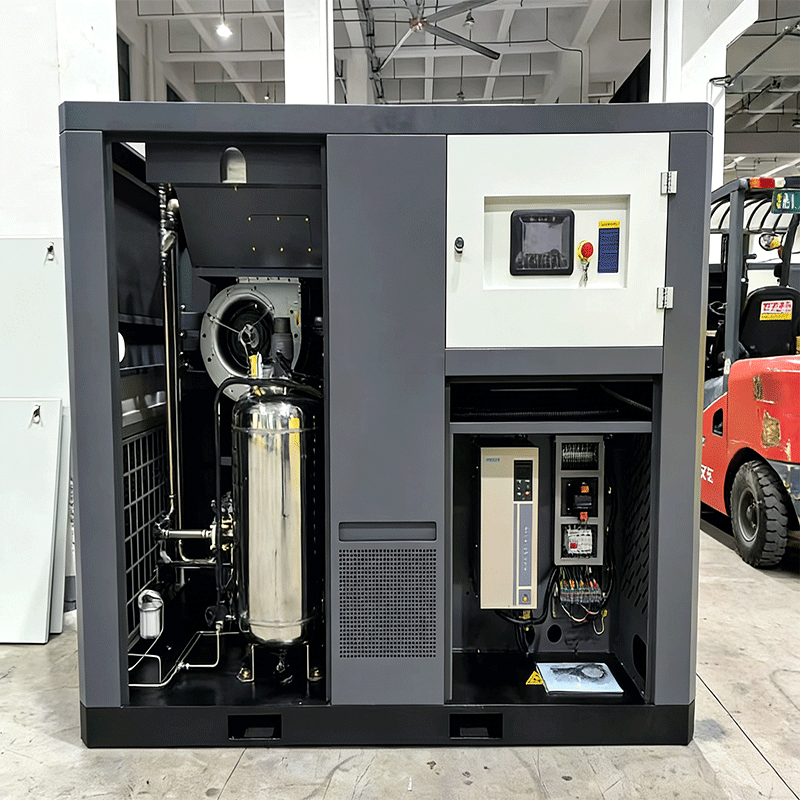

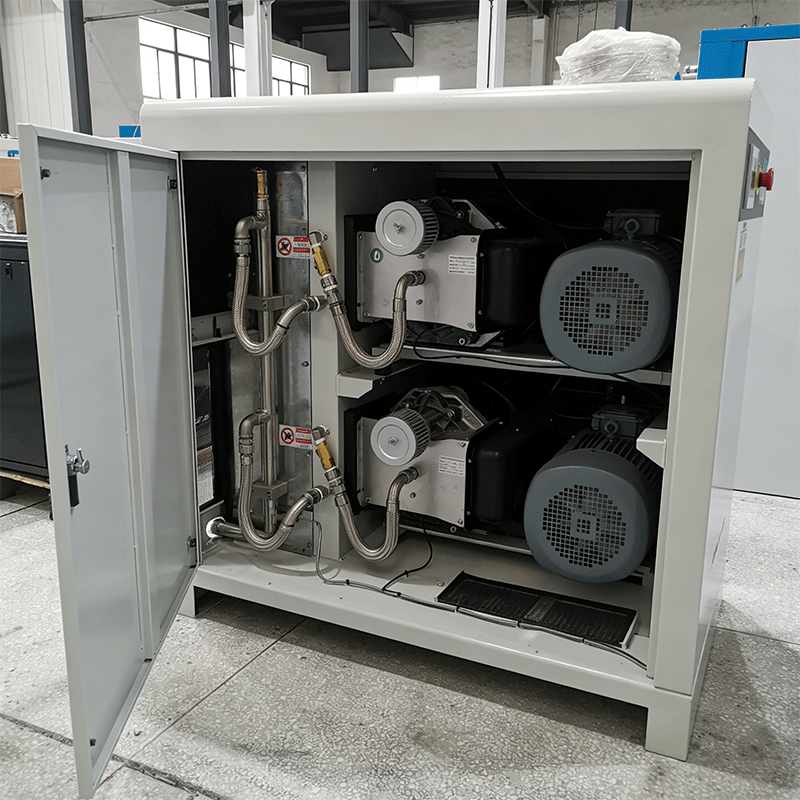

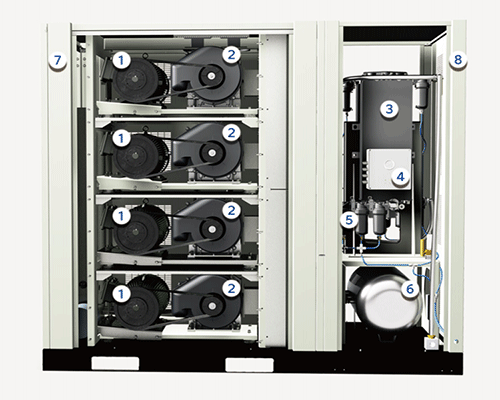

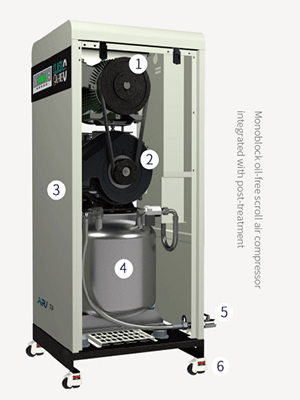

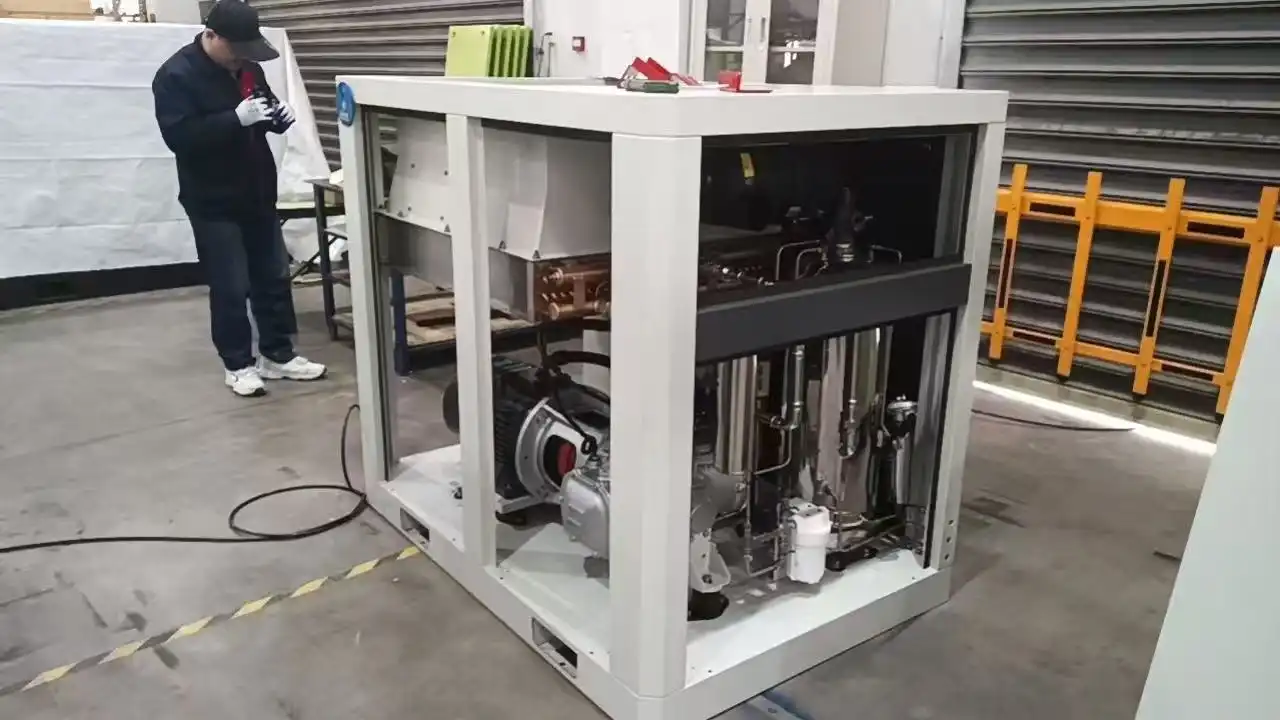

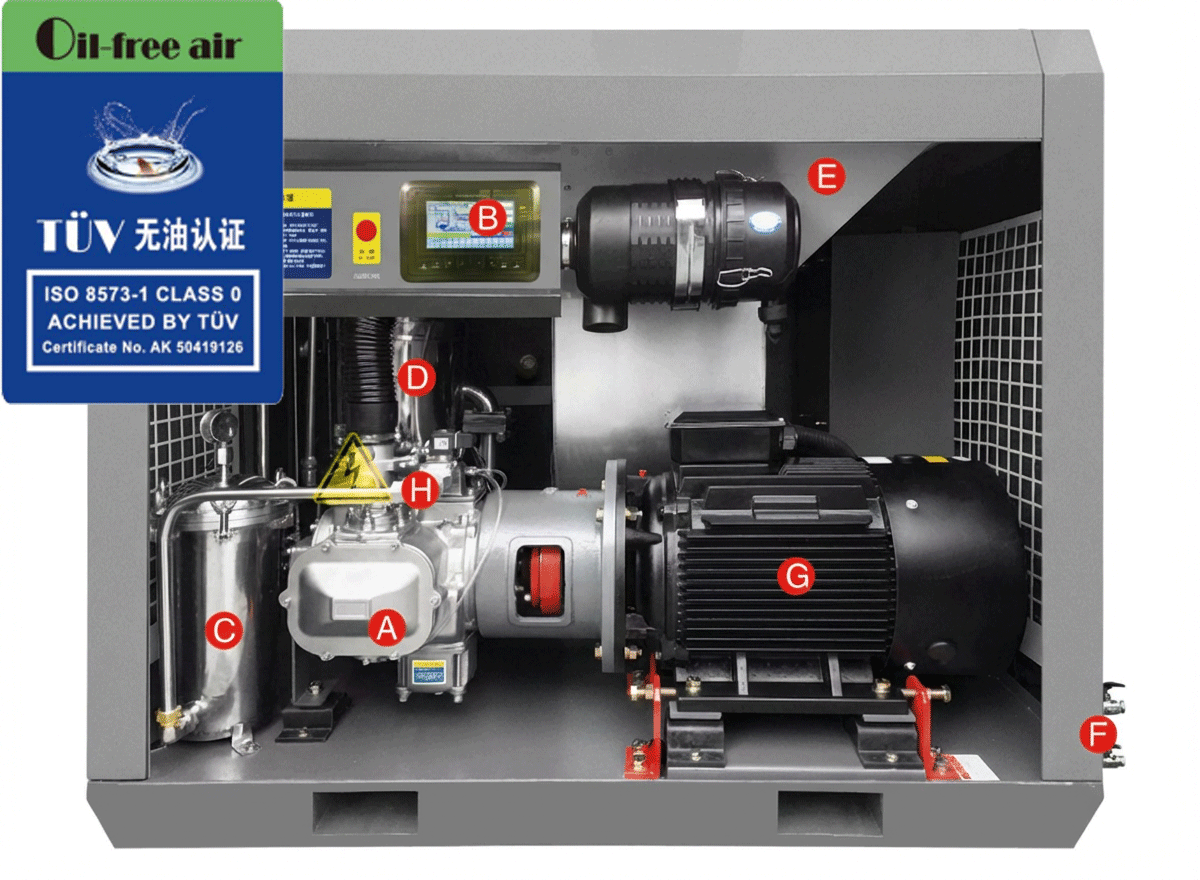

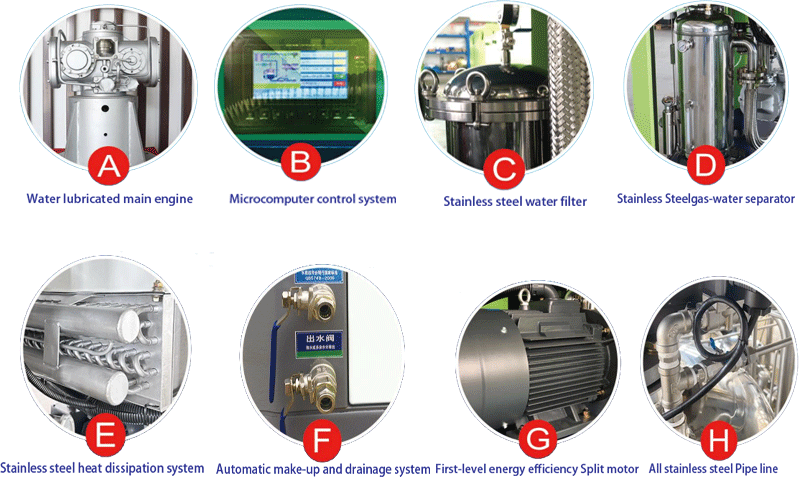

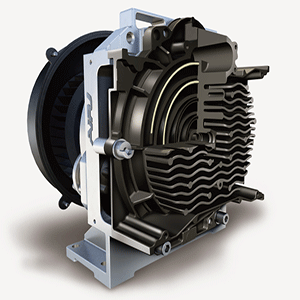

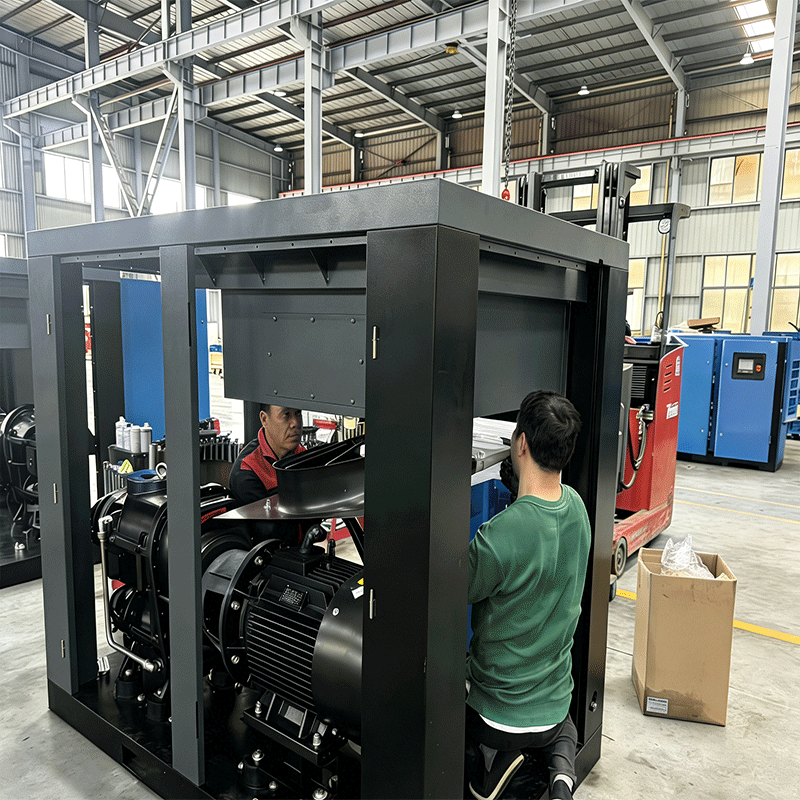

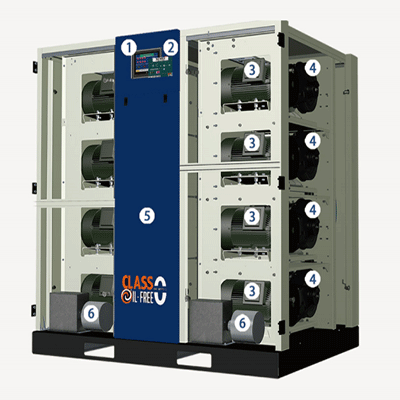

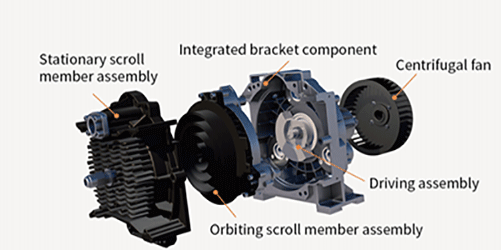

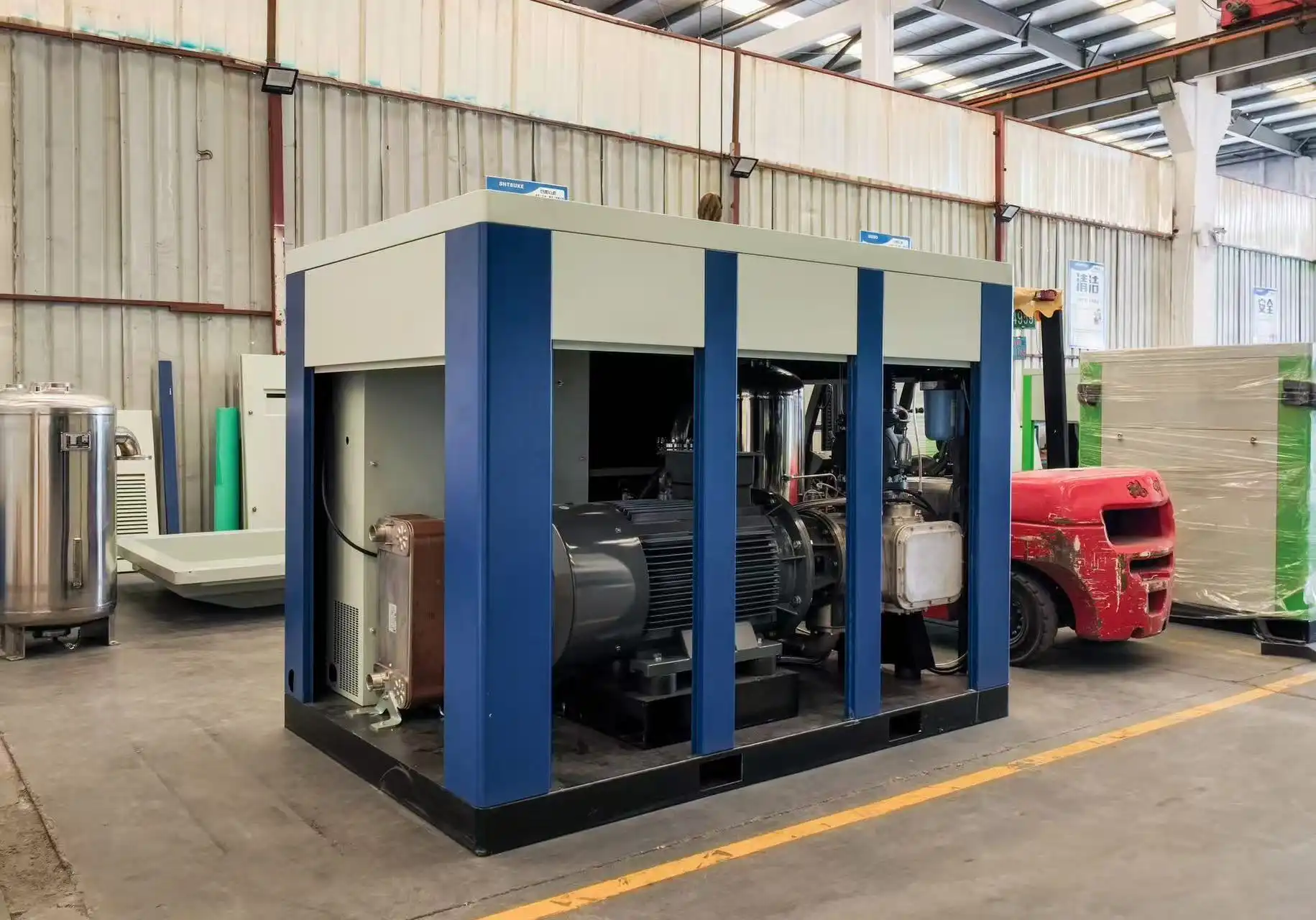

Select oil-free technology when the process specification, product-contact risk or required air-quality class demands oil-free compression. Oil-injected screw compressors with suitable filtration can serve many general manufacturing, sheet-metal and assembly applications, but they do not replace an oil-free machine when the approved process standard requires one. Define the required ISO 8573-1 class before comparing options.

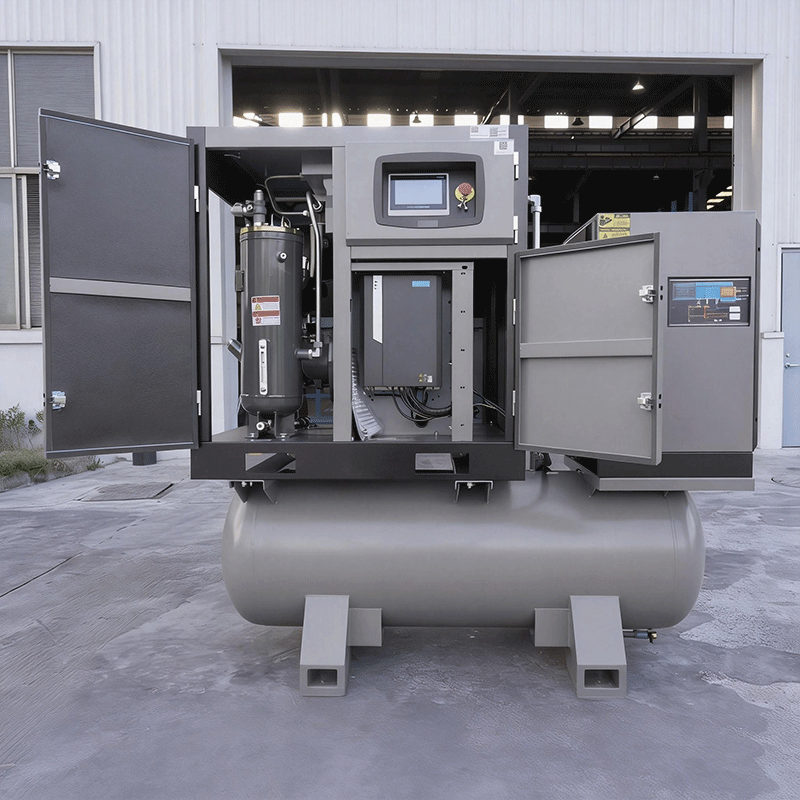

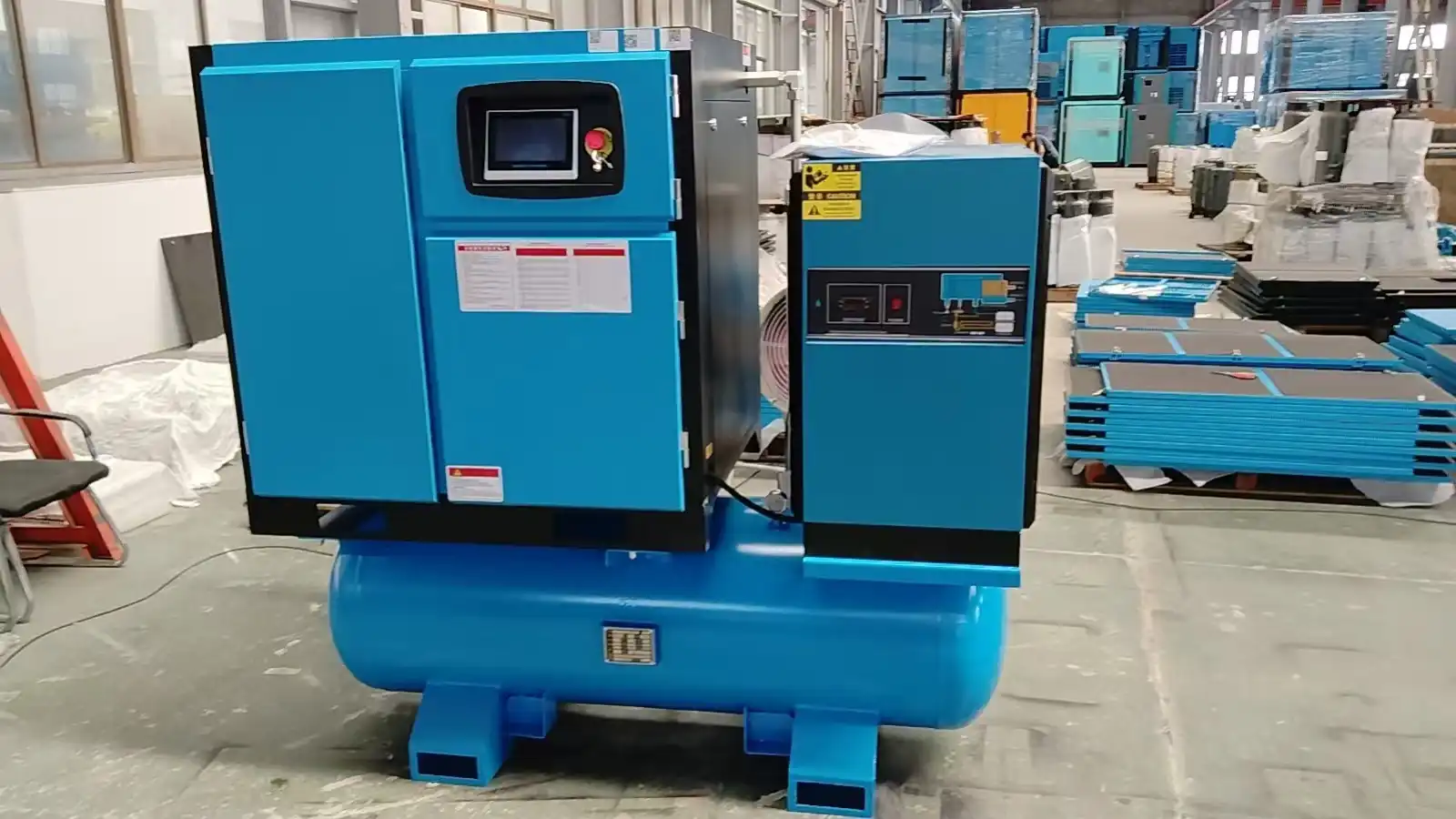

A common starting estimate is compressor free air delivery divided by six, so a 6 m³/min compressor would suggest approximately 1 m³ as an initial reference. Final receiver sizing also depends on demand peaks, control response, allowable pressure fluctuation, network volume and frequent-starting constraints. Use the model manual or a system calculation for the final selection.

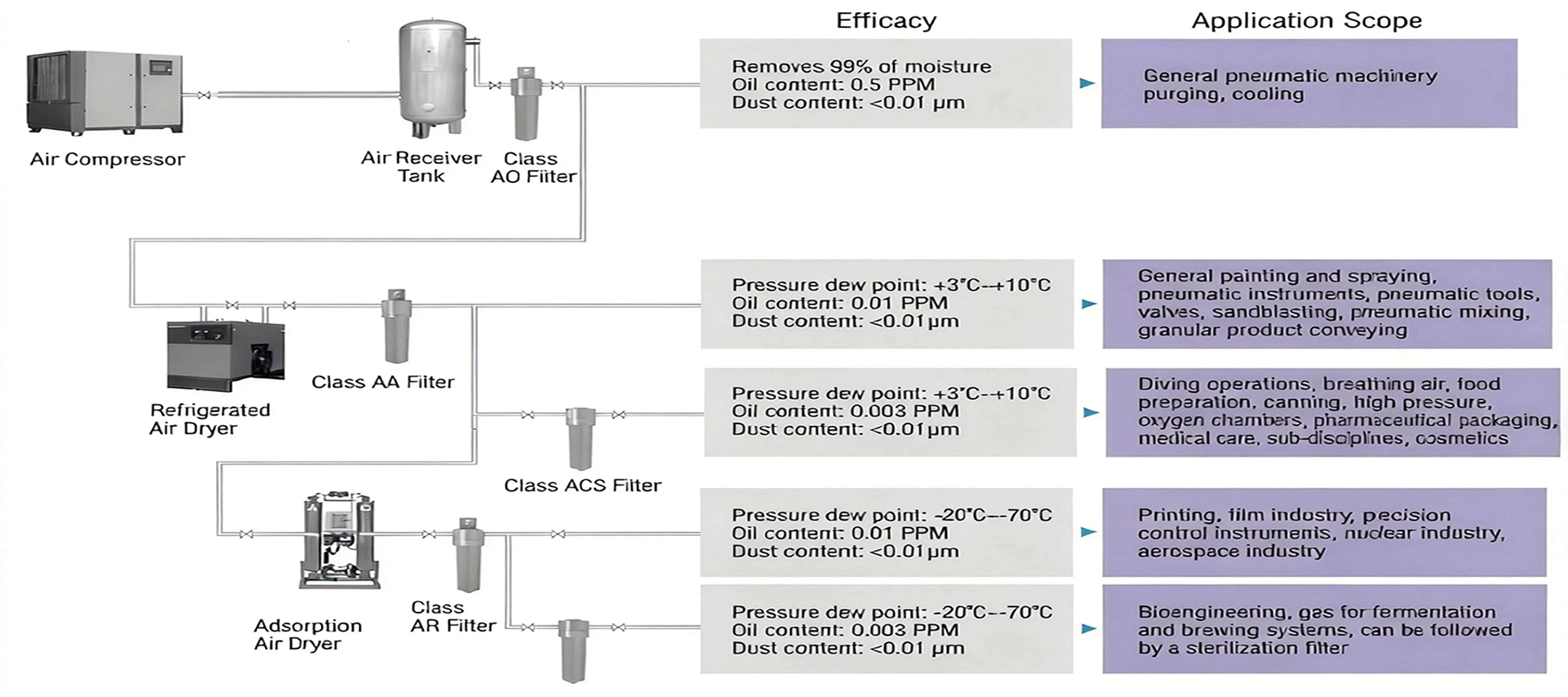

For general pneumatic tools, a refrigerated dryer plus correctly sized particulate and coalescing filters is often a practical starting point. Painting, precision instruments, electronics or processes requiring a lower pressure dew point may need adsorption drying and higher-efficiency filtration. Select treatment by flow, pressure, allowable pressure drop, dew point and particle/oil limits.

Use the proposed input power, operating hours, average load and local electricity price for a preliminary estimate. Then compare model-specific specific power and annual energy use at the same pressure and flow. The planning calculator on this page provides only an estimate and does not replace measured operating data or a lifecycle-cost study.

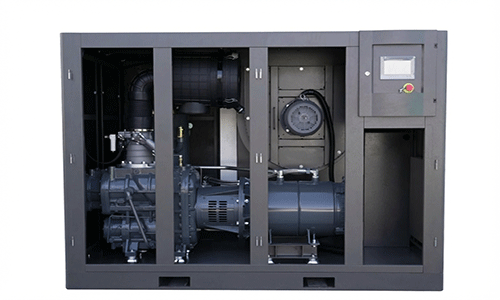

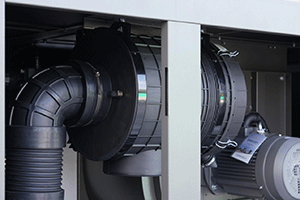

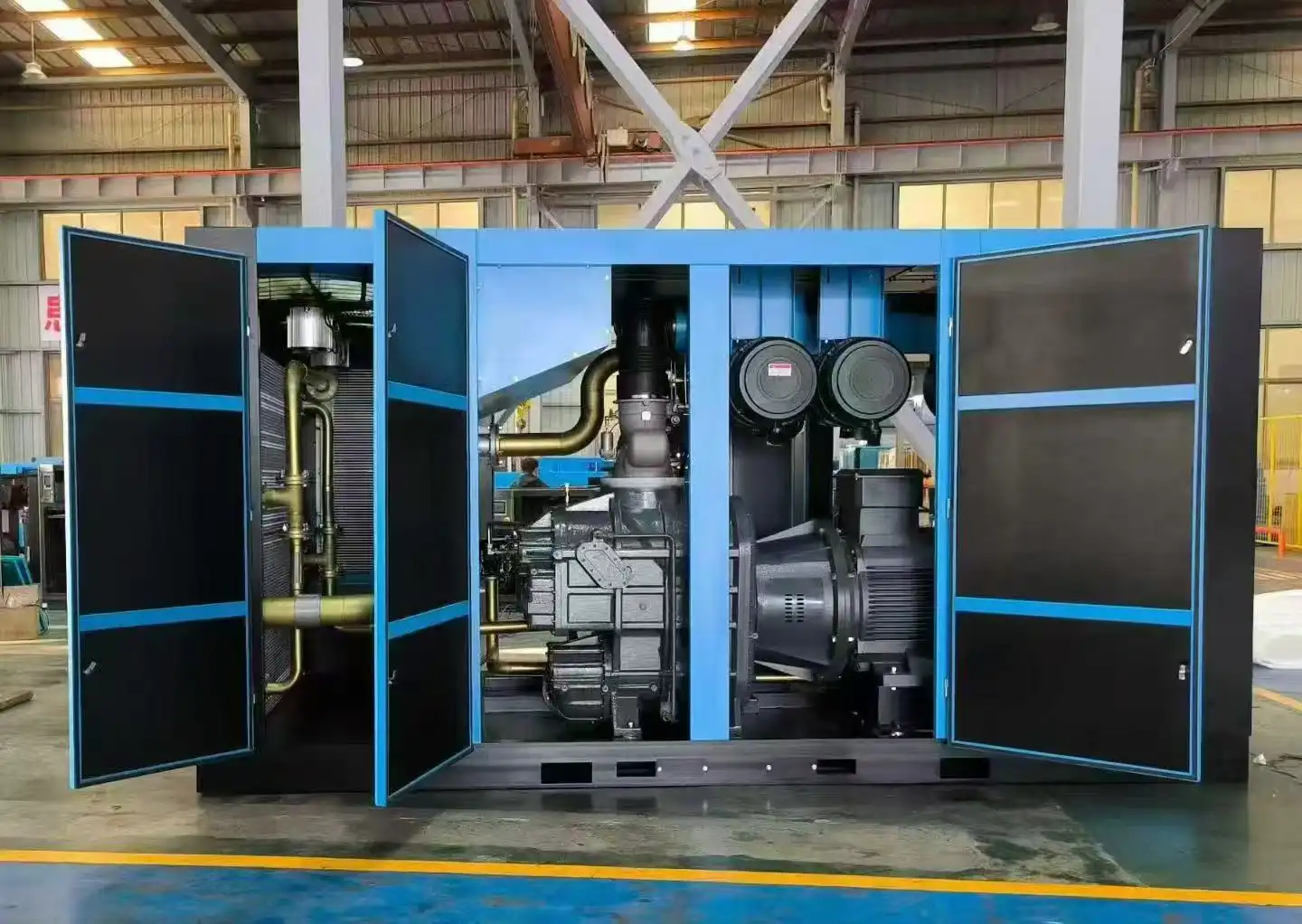

Price differences can come from air-end design, motor and control quality, single- or two-stage compression, efficiency at the actual operating point, enclosure, cooling method and included equipment. Confirm whether the quotation includes the receiver, dryer, filters, installation scope, commissioning, spare parts, documentation and warranty support.

Compare specific power, meaning input power divided by delivered air flow, at the same discharge pressure and test conditions. A lower specific-power value generally indicates better efficiency. Also review part-load performance, control range and the actual annual load profile instead of relying only on motor efficiency or a headline energy-saving percentage.

Not automatically. Higher-efficiency equipment is more likely to pay back when the compressor runs many hours at a suitable load and the efficiency advantage is verified at that operating point. Short operating hours, low utilization or a poorly sized system can produce a long payback. Compare purchase price, annual energy, maintenance and expected service life together.

Lower pressure can reduce energy use when the application can operate safely at that setpoint, but a universal percentage cannot be applied to every compressor. Published field guidance sometimes cites roughly 5%–10% for each 0.1 MPa, yet the real change depends on compressor type, control mode and operating point. Measure at the point of use and compare model data before changing pressure.

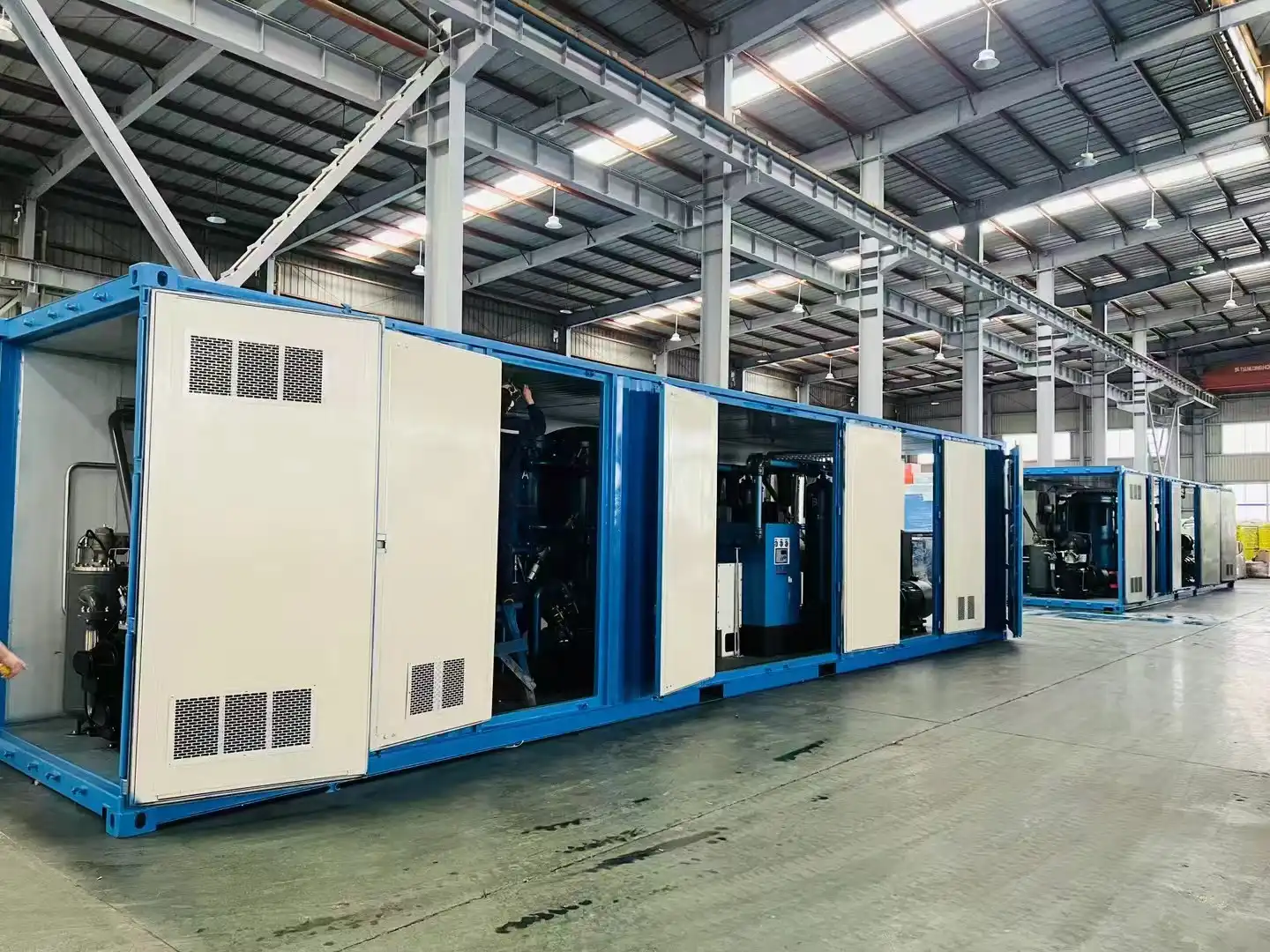

Insufficient ventilation can raise intake and discharge temperatures, reduce cooling effectiveness, accelerate lubricant ageing and cause high-temperature alarms or shutdowns. Air-cooled packages should receive enough cool-air intake and hot-air exhaust area; ducting or heat-recovery arrangements must respect the manufacturer's airflow limits.

Supply-water temperature, pressure, flow, hardness and cleanliness must meet the selected model's requirements. Poor water quality can cause scaling or fouling that reduces heat-exchanger performance and raises operating temperatures. Treat or filter cooling water as required and confirm the allowable inlet conditions with the current model datasheet.

Carbon-steel pipe is common for many general factory systems when correctly cleaned and protected against corrosion. Stainless steel or aluminium systems can be appropriate for corrosive environments, clean-air requirements or easier modular installation. Size piping for pressure loss and future flow, support it properly and include drains and isolation points.

After isolating the equipment, check lubricant level and condition, oil filter, cooler and fan, thermostatic valve, ambient temperature and ventilation. Many oil-injected screw compressors operate within a temperature range around 75–95°C, but normal values and trip thresholds vary by model and lubricant. Use the approved manual and let the machine cool before inspection.

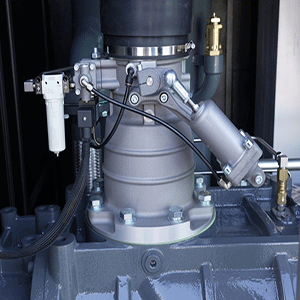

Common causes include air leaks, demand exceeding compressor output, a restricted intake filter, an inlet valve that is not fully open, belt slip or air-end wear. Check the pressure and flow measurements at the same operating condition, then inspect the control and mechanical items listed in the service manual.

Frequent loading and unloading may result from insufficient storage volume, a pressure band that is too narrow, leakage, rapidly changing demand or unsuitable control settings. Verify receiver and network volume, find leaks and review the controller configuration. Do not widen the pressure band beyond the downstream equipment's safe operating limits.

Check dryer performance, separator operation, automatic drains, receiver drainage, filter condition and low points in the piping. Moisture can cause corrosion and pneumatic-component sticking, so confirm the required pressure dew point and ensure drains and filters are maintained.

Inspect the oil-gas separator, return-line check valve, oil level, filter condition and drainage; excessive oil may also follow overfilling or separator failure. Confirm the expected residual-oil specification for the selected compressor and filtration arrangement, and repair the equipment before downstream contamination spreads.

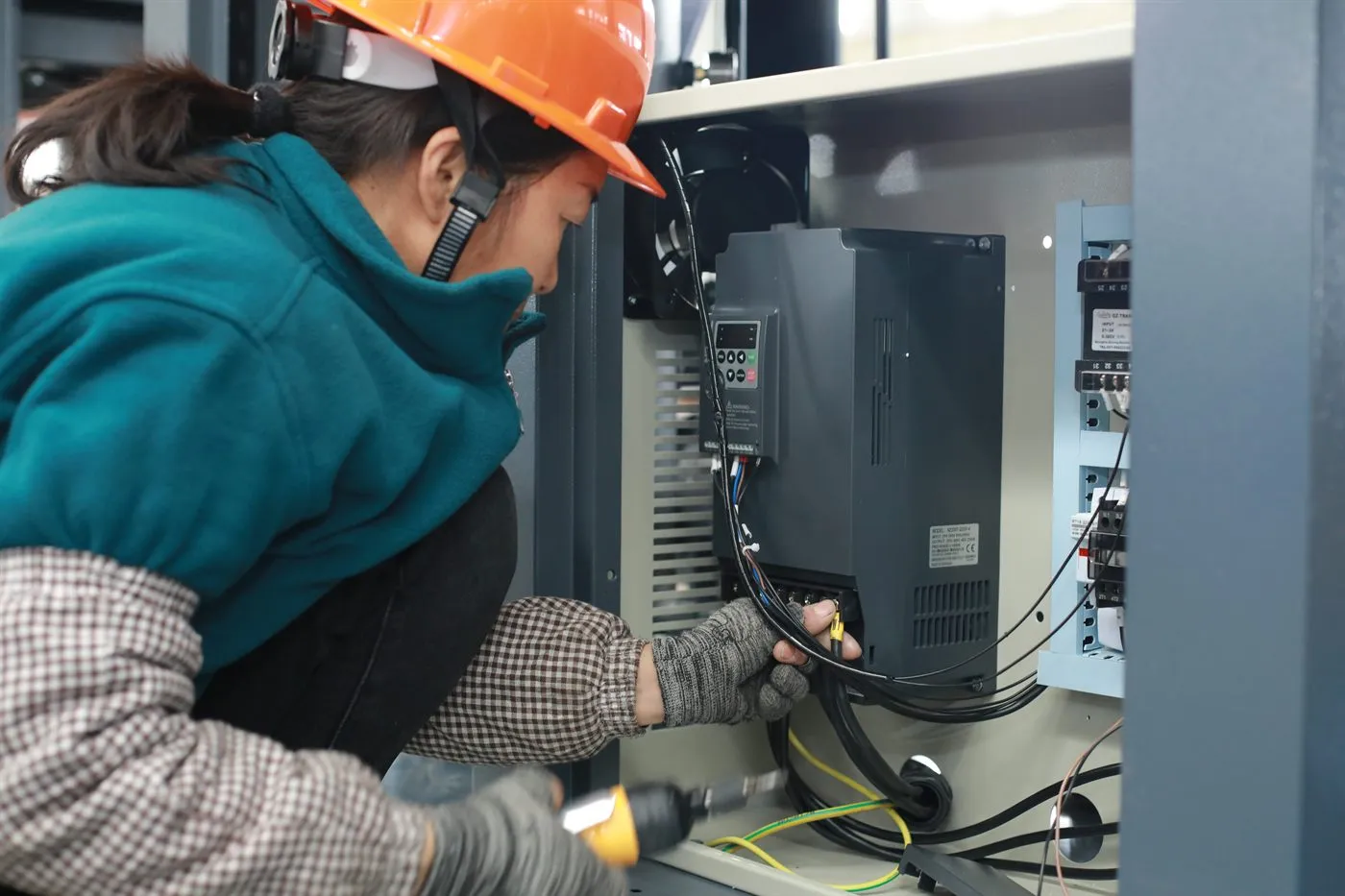

Stop repeated restart attempts and isolate the power supply if safe. Check supply voltage, circuit protection, emergency stop, motor overload, pressure or temperature interlocks, sensor faults, wiring and controller alarms. Electrical and internal-control work must be performed by qualified personnel; do not bypass safety devices.

Follow the approved model manual and operating-hour schedule. Typical consumables include the air filter, oil filter, separator element, lubricant and precision filter elements; contaminated or hot environments may require shorter intervals. Record running hours, pressure, temperature, oil analysis and maintenance actions.

Blocked filters can increase resistance and energy use, degraded lubricant can accelerate wear, and separator or cooler failures can cause oil carryover, overheating or unplanned shutdown. Delaying service may turn a scheduled consumable replacement into a more costly repair and increase production risk.

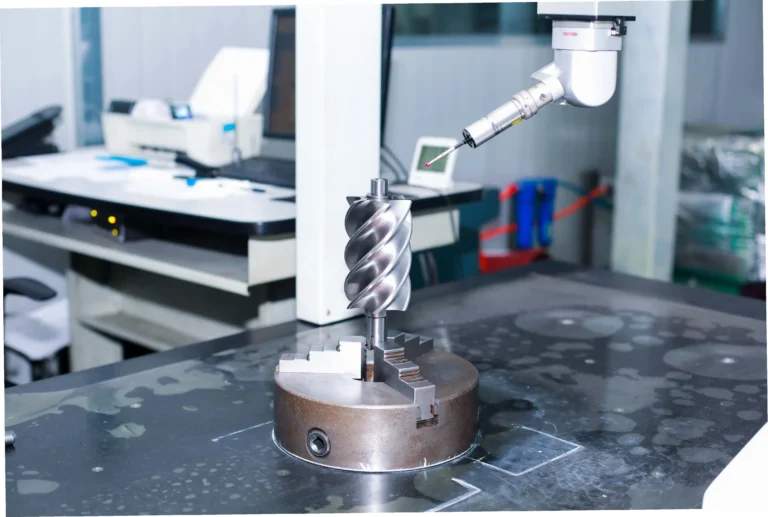

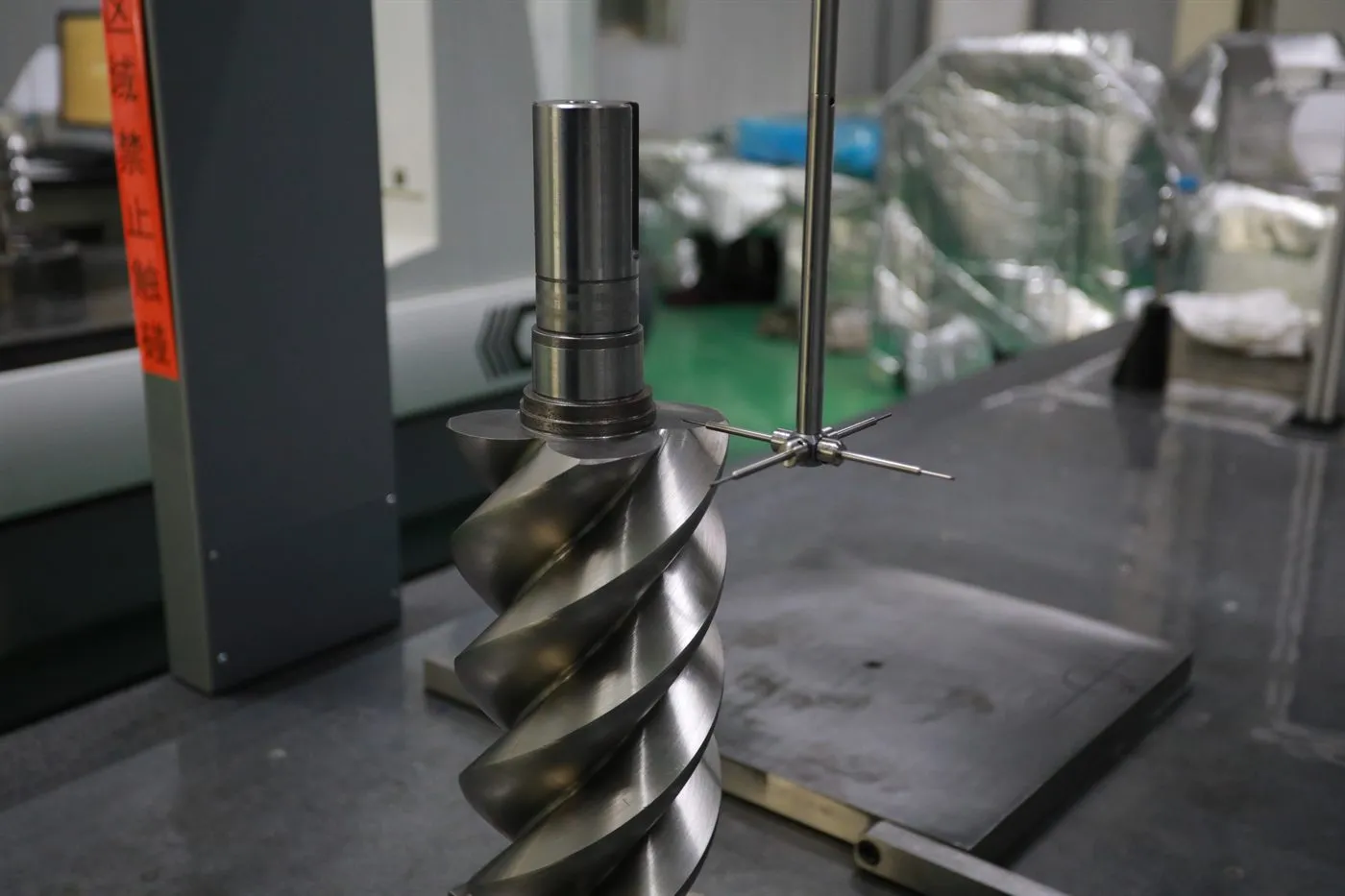

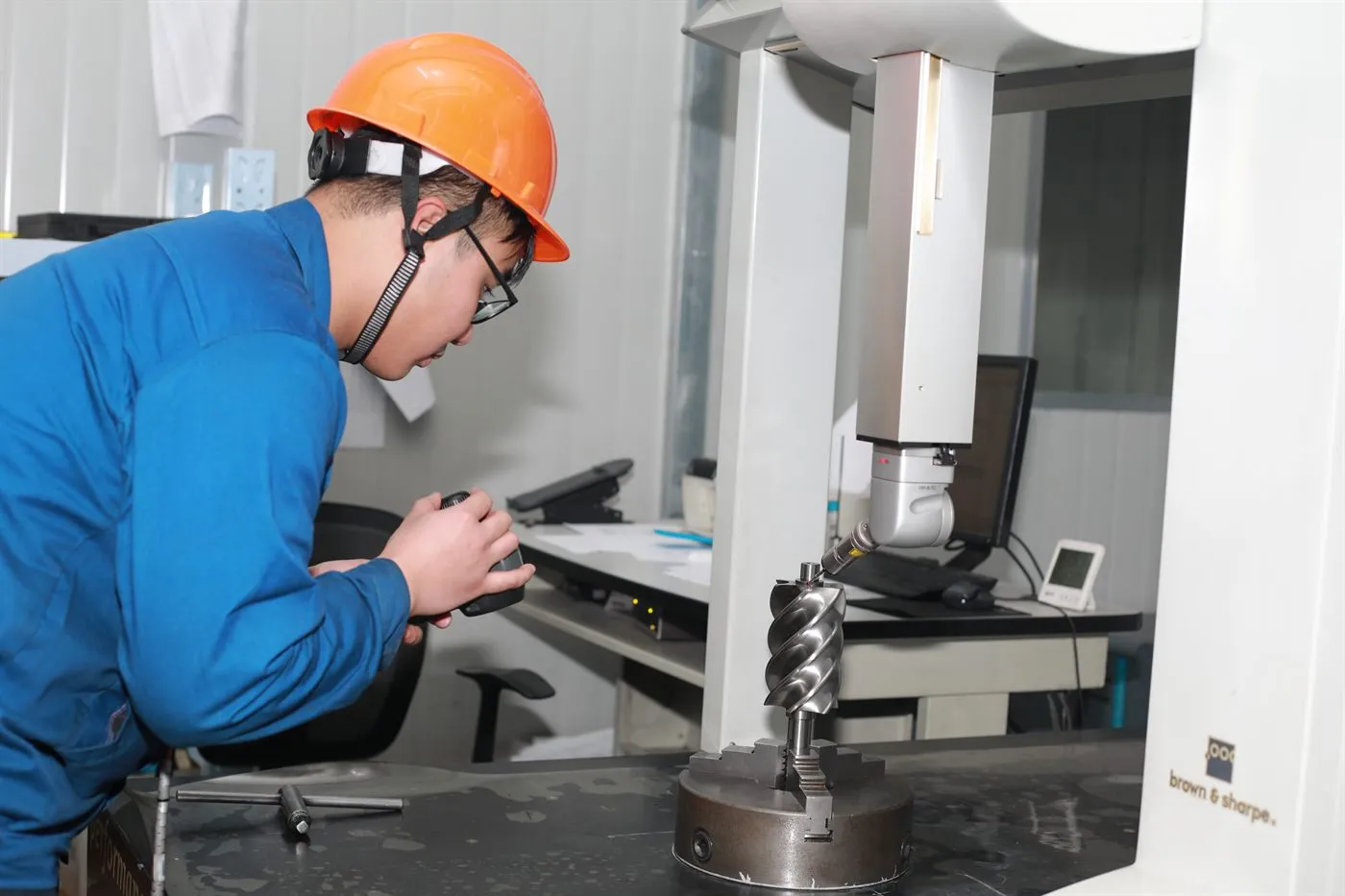

Consider inspection when output declines, specific power rises, abnormal noise or vibration appears, oil leakage develops or rotor clearance is suspected to have increased. An overhaul can involve bearings, seals, rotor inspection and clearance correction. First rule out leaks, inlet restrictions, controls and treatment pressure loss so the final decision uses operating data.

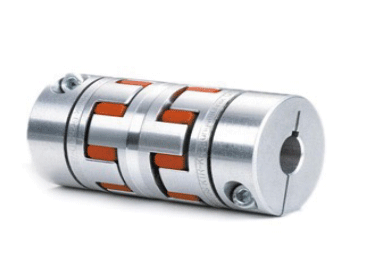

The difference is not the label alone; it includes material specifications, filtration performance, tolerances, calibration and traceability. A non-compliant filter may allow more contaminants into the air end, while unstable sensors, seals or thermostatic valves can cause alarms or failure. Confirm compatibility, technical evidence and warranty terms before selecting a replacement part.
