PSA Nitrogen Generator Manufacturer – Up to 99.9995% Purity
Our PSA nitrogen generator delivers high-purity nitrogen up to 99.9995% for laser cutting, food packaging, pharma blanketing, and electronics manufacturing. weisidun provides customized solutions with stable performance and low energy consumption.
PSA Nitrogen Generator Applications
High-purity on-site nitrogen for demanding industrial processes:

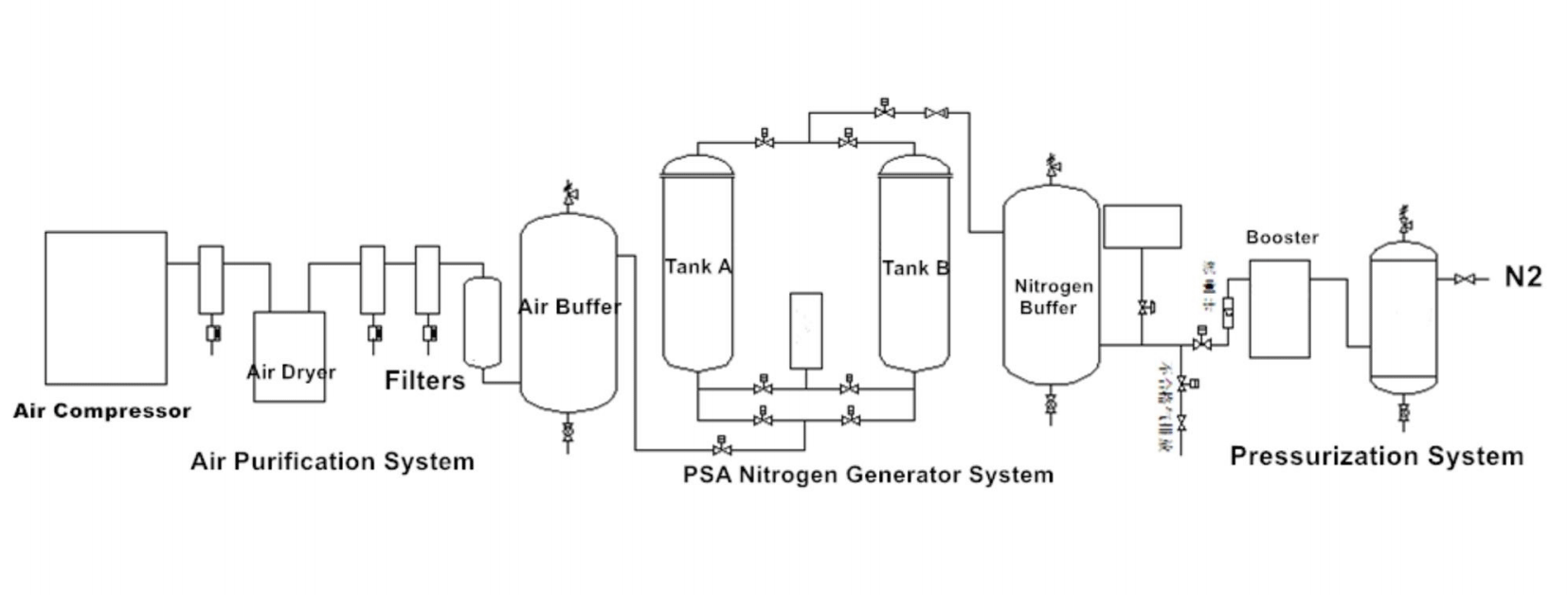

The PSA (Pressure Swing Adsorption) nitrogen generator is an on‑site air separation unit that uses carbon molecular sieves (CMS) to selectively adsorb oxygen from compressed air. It continuously produces high‑purity nitrogen gas up to 99.9995% at ambient temperature.
The adsorbed oxygen is released by depressurizing the adsorption bed, allowing the system to regenerate and operate in a cyclical adsorption‑desorption process – ensuring uninterrupted nitrogen supply for industrial applications.
▸ Ideal for laser cutting, food packaging, electronics, and pharmaceutical manufacturing.

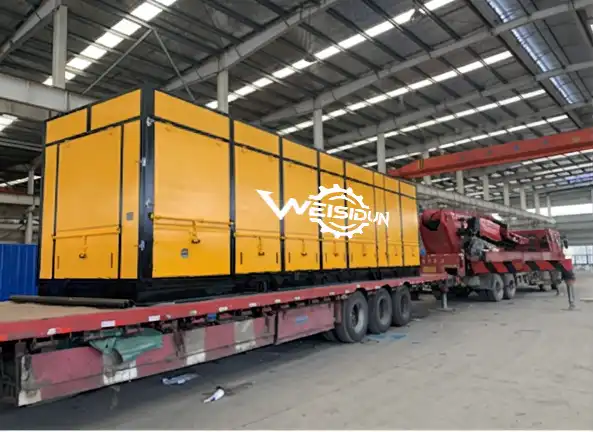

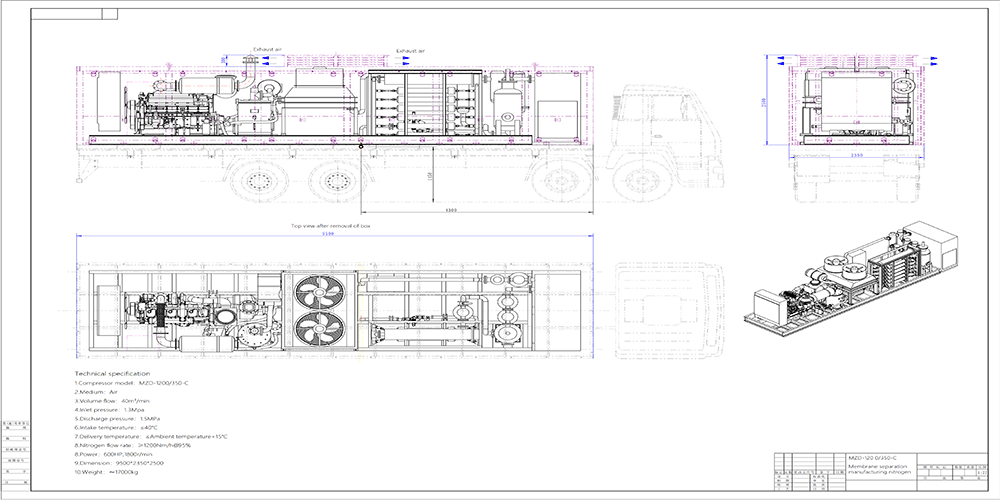

Membrane Nitrogen Generator – 95% Purity for Oil & Gas Field Operations

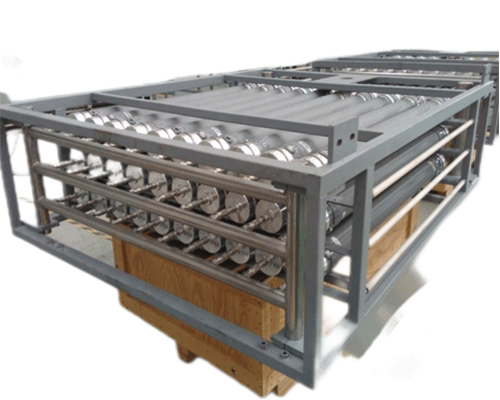

Our membrane nitrogen generator uses advanced hollow-fiber separation technology to deliver reliable 95% purity nitrogen directly at the wellsite. Designed for harsh oilfield environments, weisidun membrane systems feature rugged construction, simple operation with no moving parts, and diesel/gas engine drive options for completely off-grid deployment. With flow rates from 300 to 1,500 Nm³/h and discharge pressures up to 50 MPa, our systems meet the demanding requirements of pipeline purging, enhanced oil recovery (EOR), and tank inerting.
Main Applications – Oil & Gas Membrane Nitrogen
weisidun membrane nitrogen generators are purpose-built for demanding oilfield operations:
| Component | Specification | Manufacturer / Origin |
|---|---|---|
| PLC Controller | Siemens | Joint Venture |
| 10" Color Touch Screen | Weilun | Joint Venture |
| Flow Metering | Instantaneous / Cumulative | Joint Venture |
| X1 Condensed Filter | HF0620X1 | WALKER |
| XA Condensed Filter | HF0620XA | WALKER |
| XAA Condensed Filter | HF0620XAA | WALKER |
| ACS Activated Carbon Filter | HF1000ACS | WALKER |
| Membrane Group (Low Pressure) | MHZ-4160A | Korea |
| Online Oxygen Analyzer | PCH (3-year service life) | Ion Flow Oxygen Sensor |
PSA vs. Membrane
Which Technology Is Right for You?
Not sure which nitrogen generation system fits your application? Compare key parameters side-by-side to make an informed decision. From high-purity PSA for electronics to rugged membrane units for oilfields — we've got you covered.
| Parameter | PSA Nitrogen Generator | Membrane Nitrogen Generator |
|---|---|---|
| Purity Range | 95% – 99.9995% | Up to 95% (standard) |
| Flow Capacity | Up to 5,000 Nm³/h | 300 – 1,500 Nm³/h |
| Technology | Carbon molecular sieve adsorption | Hollow-fiber membrane permeation |
| Best Applications | Laser cutting, food packaging, electronics, pharma | Oil & gas pipeline purging, EOR, tank inerting |
| Maintenance | Regular CMS replacement (3-5 years) | Low maintenance, no moving parts |
| Energy Efficiency | Higher for high-purity applications | Better for lower-purity, high-volume needs |
| Mobility | Skid-mounted or containerized | Skid-mounted or truck-mounted |
Frequently Asked Questions – Industrial Nitrogen Generators

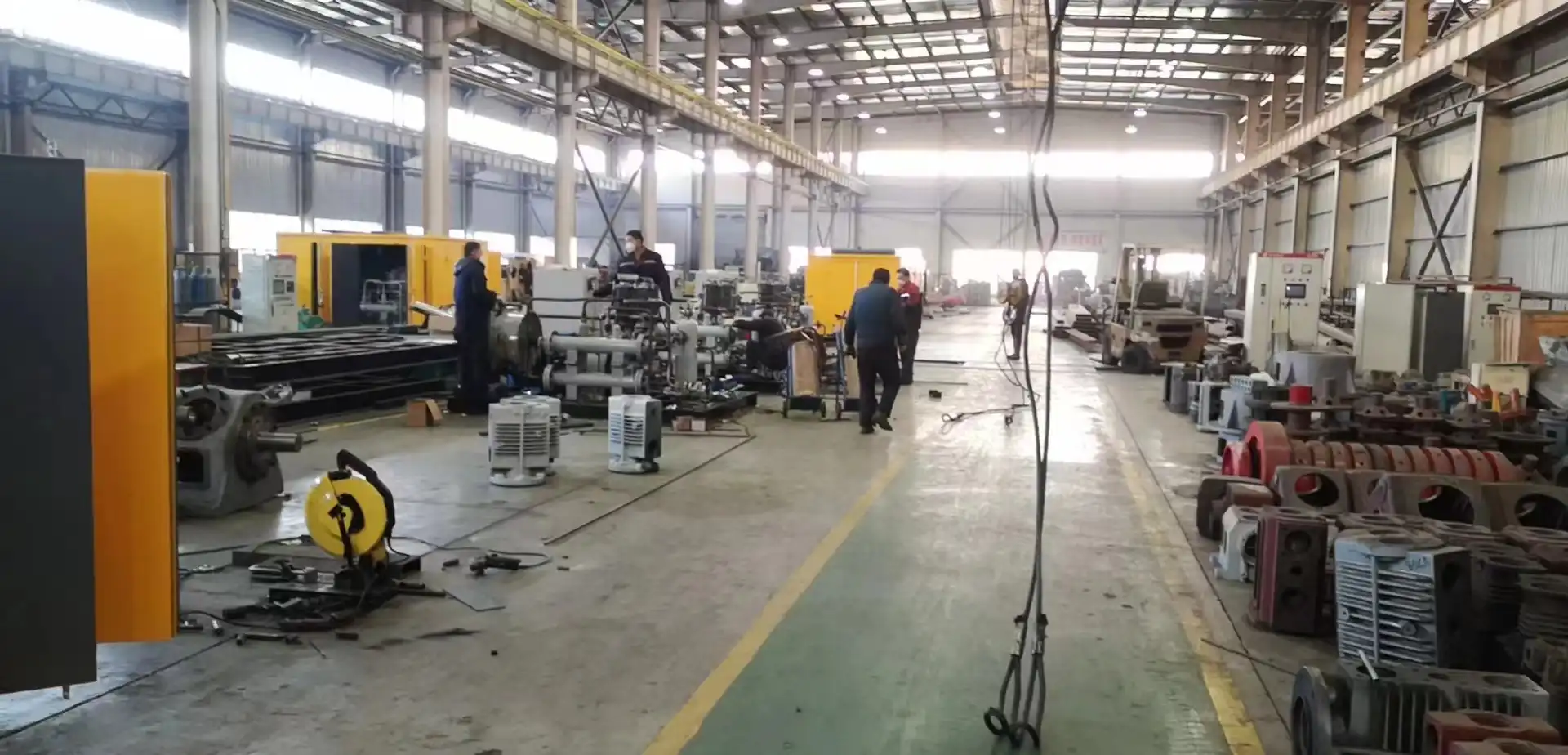

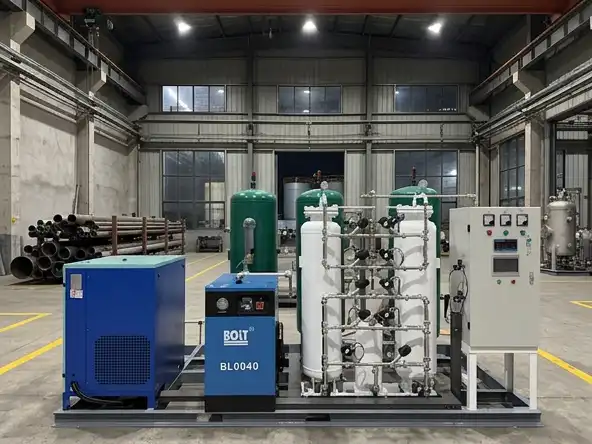

Precision Manufacturing for PSA & Membrane
Nitrogen Generation Systems

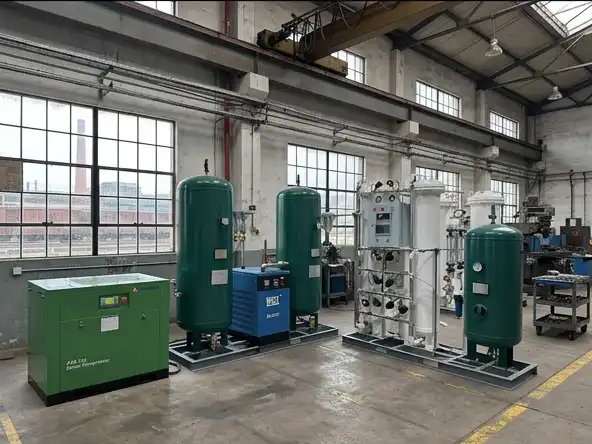

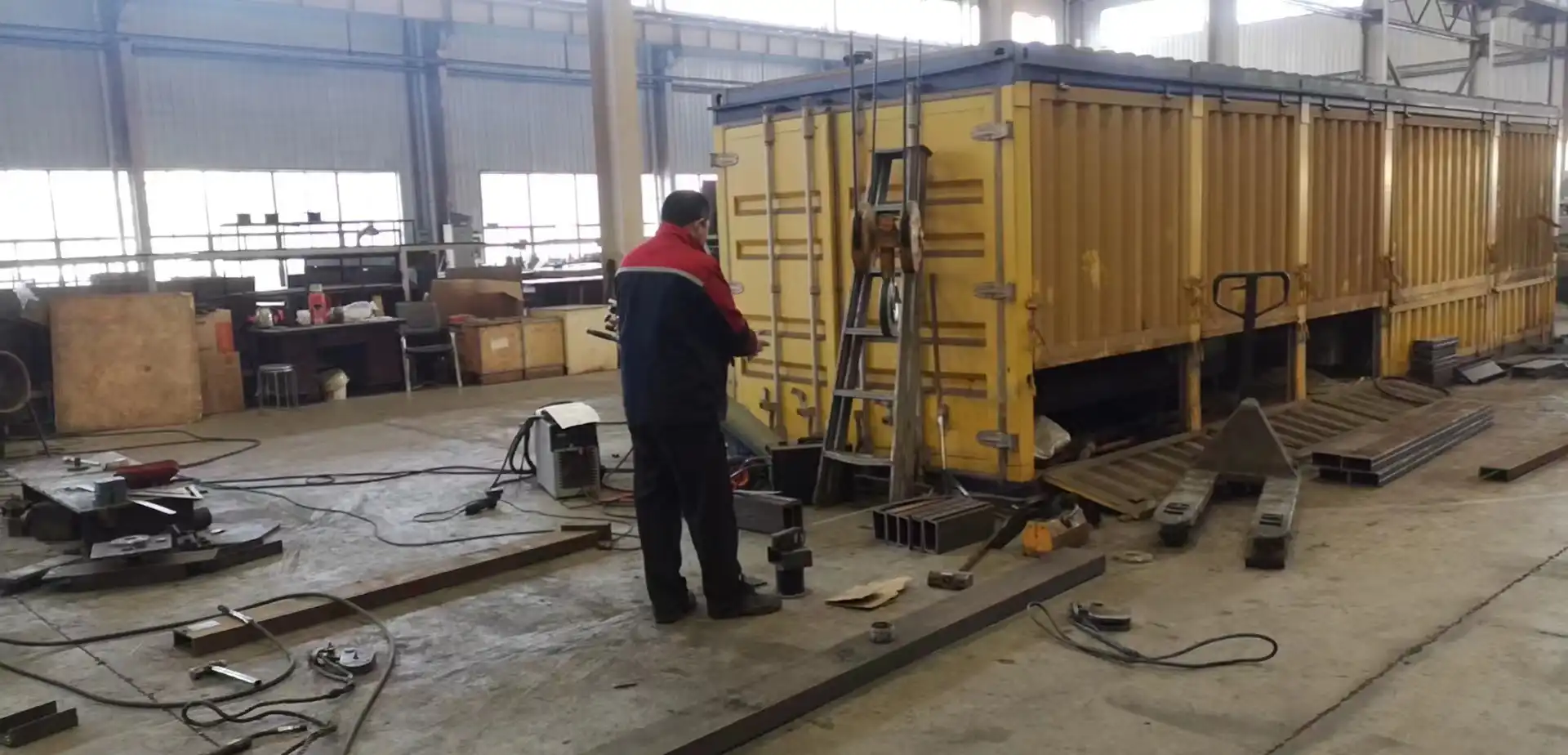

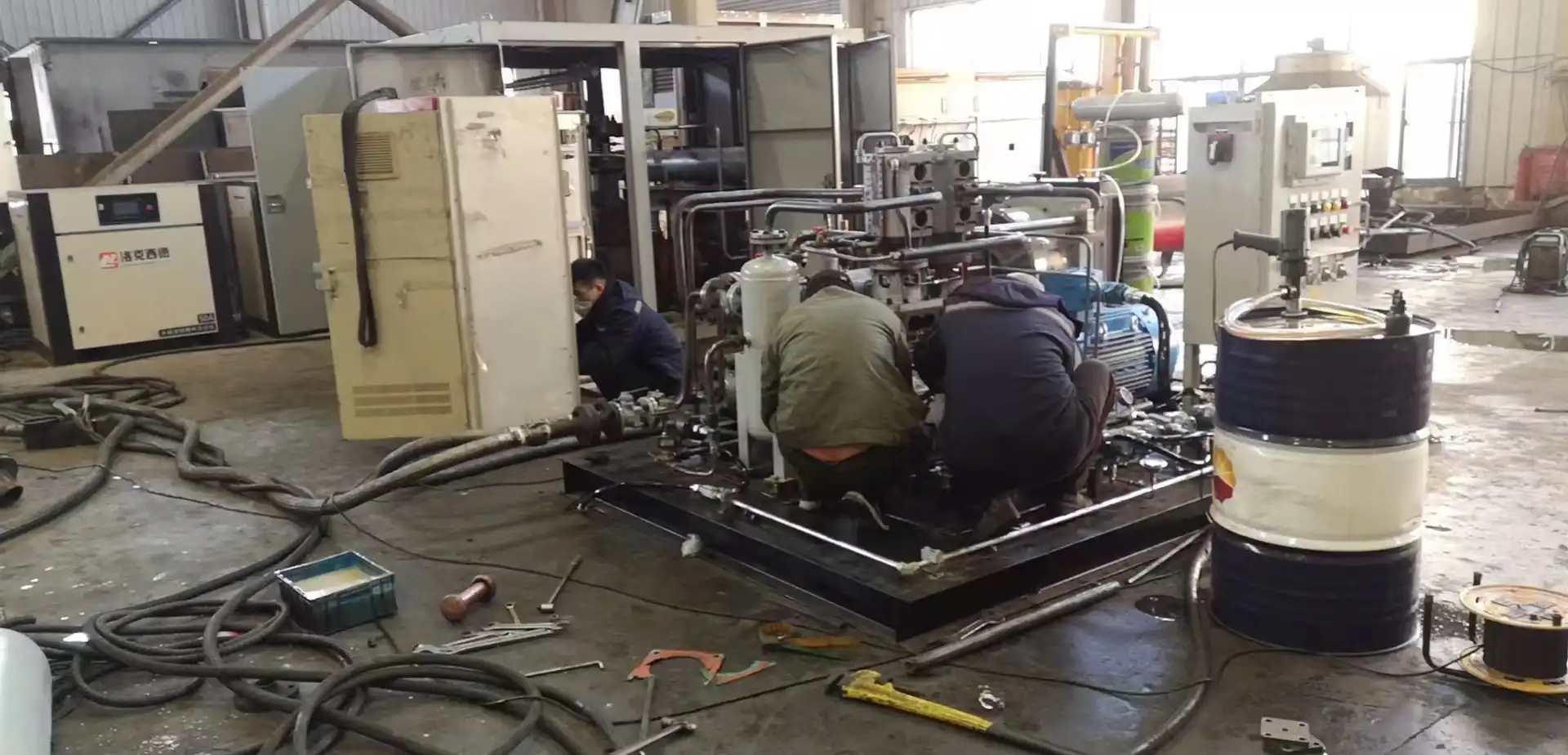

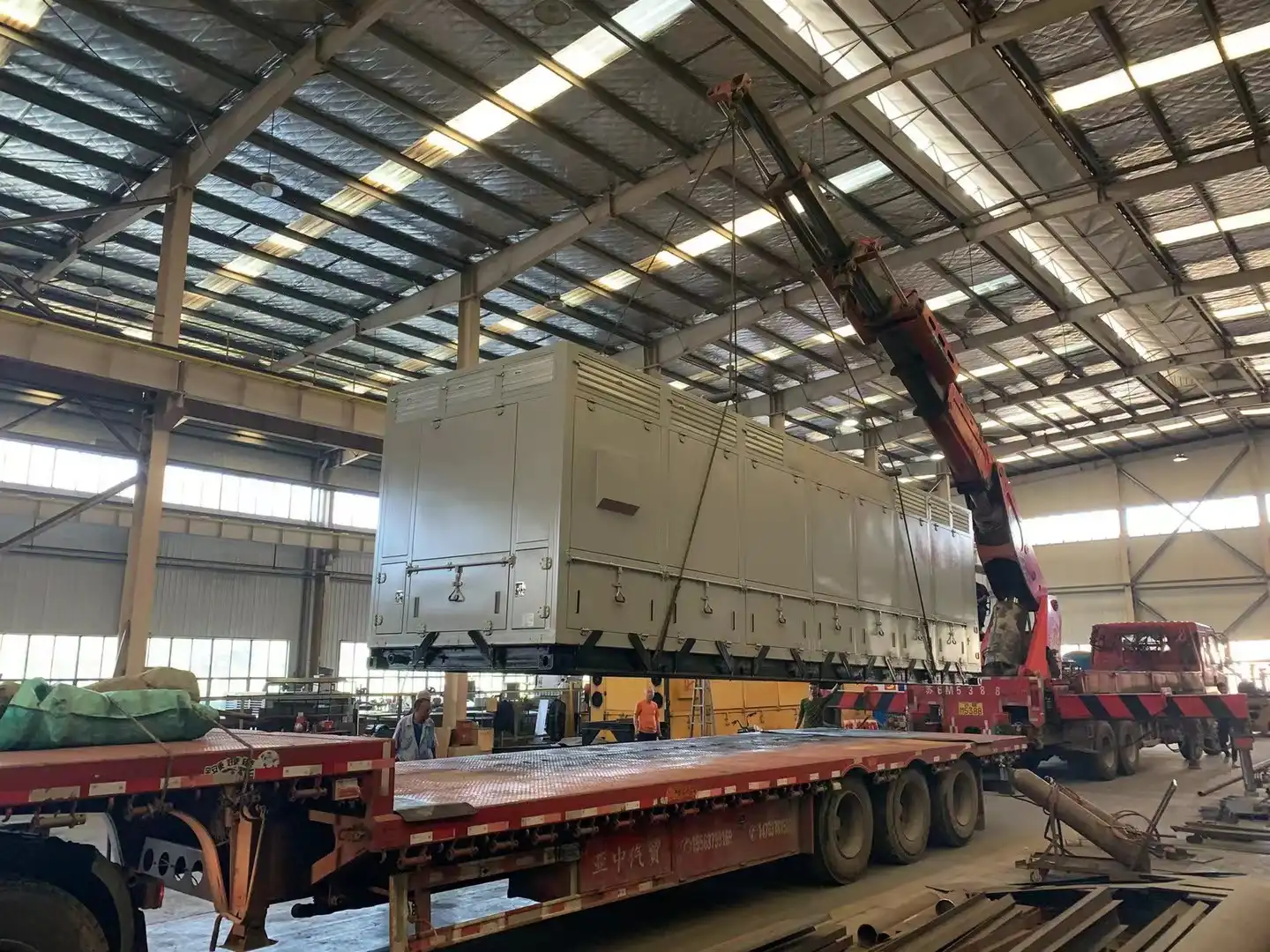

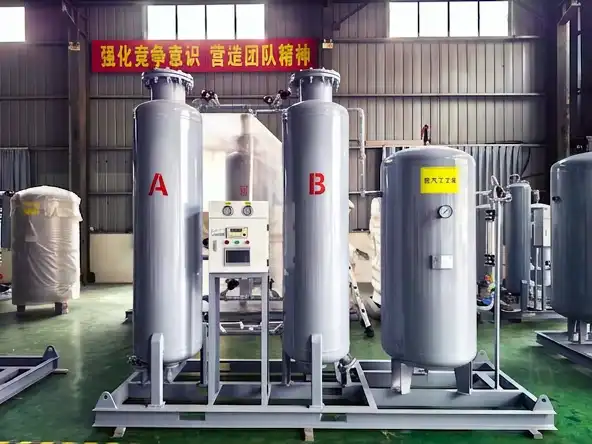

State-of-the-art production facilities equipped with advanced CNC machinery, automated welding stations, and rigorous quality control — ensuring every nitrogen generator meets international standards.
Proven PSA Nitrogen Generator
Performance Across Industries
From chemical processing to laser cutting, weisidun PSA systems deliver reliable on-site nitrogen that reduces costs and improves operational efficiency. See how our customers benefit.

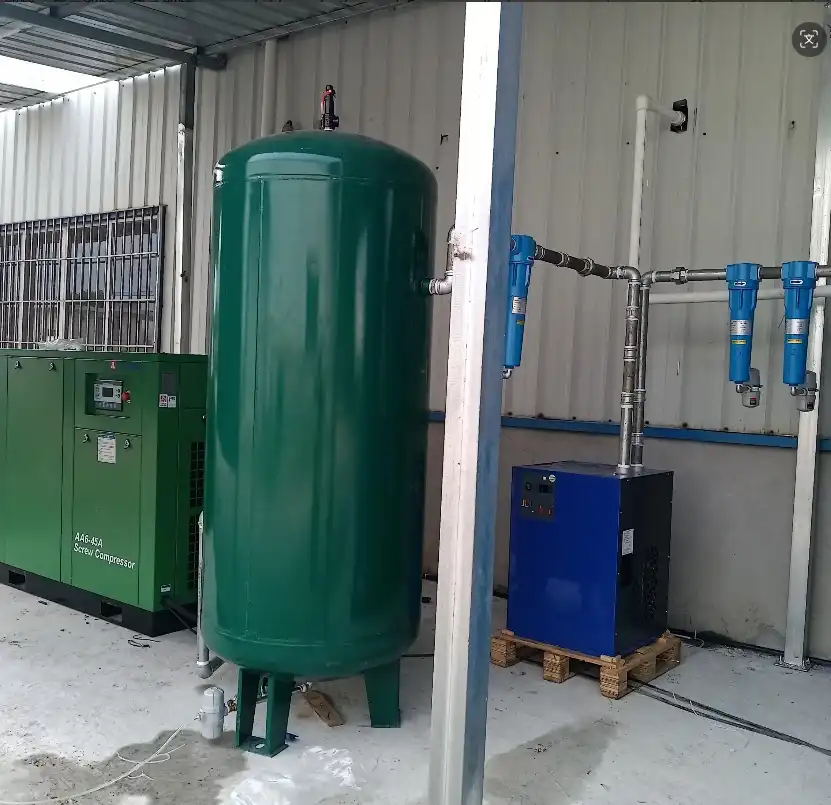

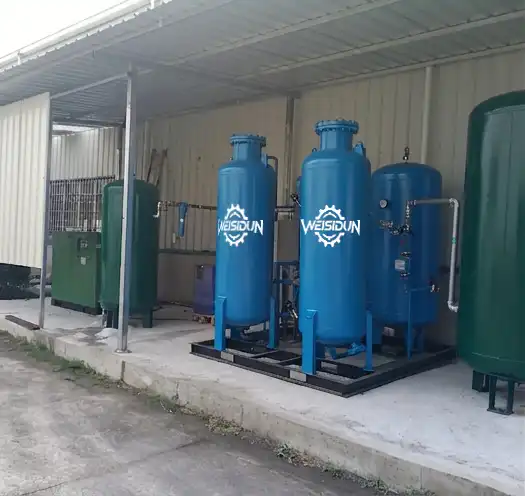

High-Volume Nitrogen for Solvent Blanketing & Inerting
Challenge: A specialty chemical manufacturer in Southeast Asia relied on liquid nitrogen deliveries, facing rising costs and supply disruptions during peak production.
Solution: weisidun installed a 600 Nm³/h PSA nitrogen generator with 99% purity, integrated directly into their reactor blanketing and solvent storage inerting systems.

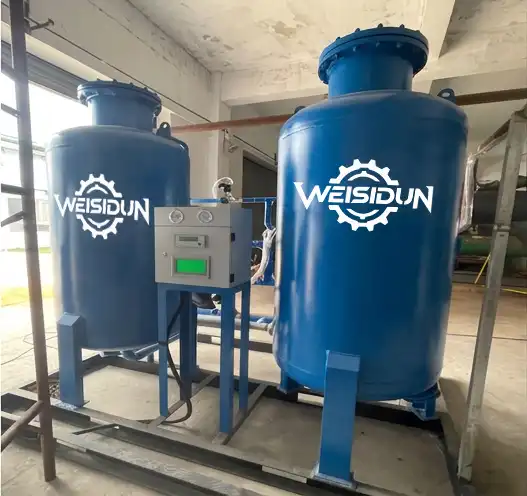

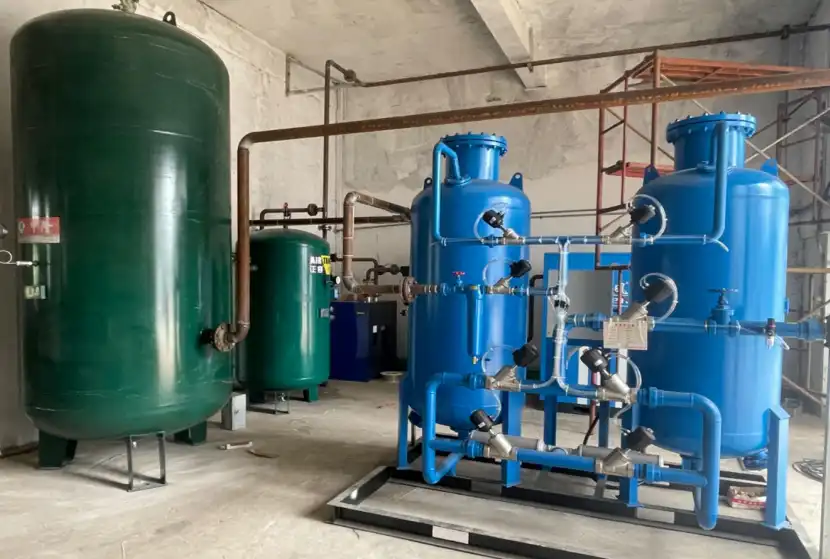

High-Purity N2 for Stainless Steel & Aluminum Cutting
Challenge: A precision metal fabrication shop operating six fiber laser cutters was consuming over 250 cylinders of nitrogen per month. Bottle changeovers caused frequent downtime and inconsistent cut quality.
Solution: weisidun provided a 300 Nm³/h PSA nitrogen generator delivering 99.5% purity, with a buffer tank and booster to maintain stable pressure across all six machines.

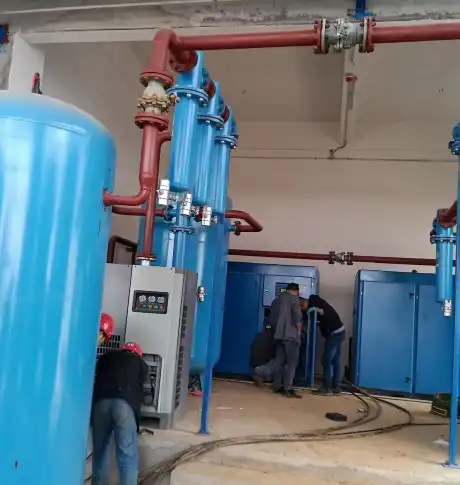

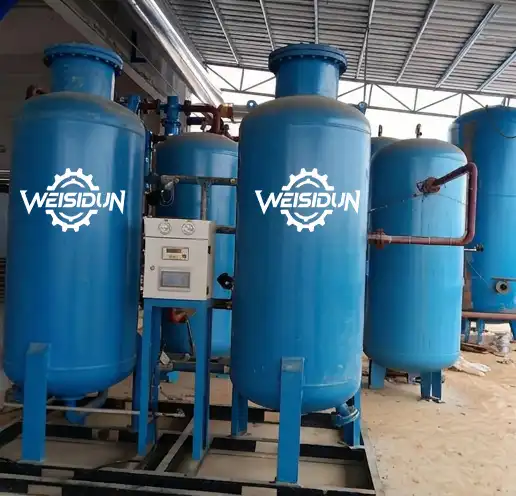

Ultra-High Purity N2 for Sensitive Material Synthesis
Challenge: A research-focused new materials company required ultra-high purity nitrogen (99.99%) for synthesizing oxygen-sensitive compounds. Cylinder gas introduced trace impurities that compromised batch consistency.
Solution: weisidun designed a compact 80 Nm³/h PSA system with enhanced carbon molecular sieve bed and precision filtration to guarantee 99.99% purity at point-of-use.

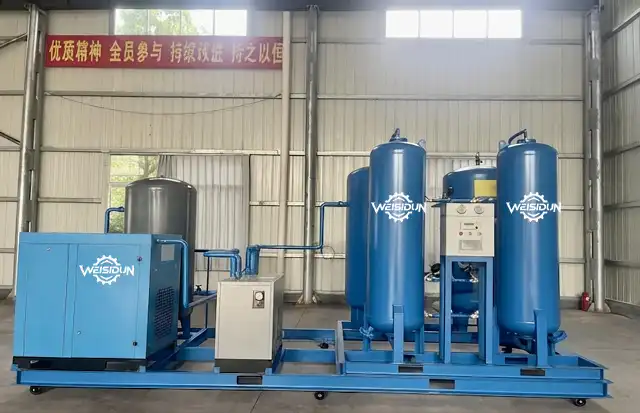

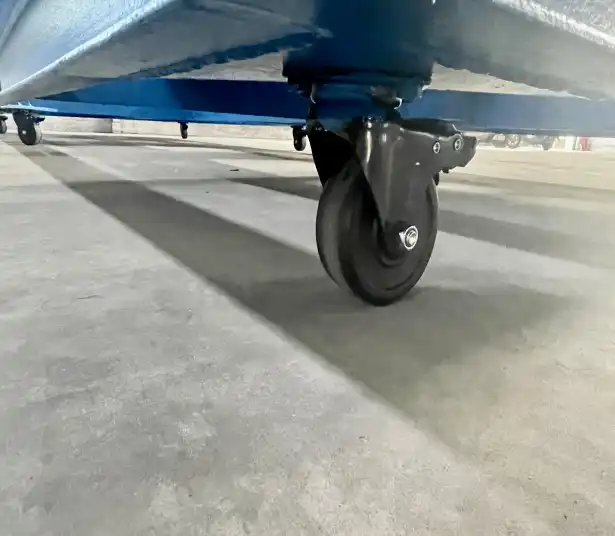

Mobile N2 System for On-Site Fumigation & Pest Control
Challenge: A large grain storage cooperative managed multiple dispersed silo sites. Traditional chemical fumigation was costly, environmentally regulated, and required long aeration periods before grain could be moved.
Solution: weisidun supplied a trailer-mounted mobile PSA nitrogen generator (100 Nm³/h, 99.5% purity). The unit can be towed between sites and rapidly connected to silo injection ports for controlled atmosphere treatment.
Proven Membrane Nitrogen Generator
Performance in Oil & Gas Operations
From pipeline purging to enhanced oil recovery, weisidun membrane nitrogen systems deliver reliable on-site N2 in the world's most demanding oilfield environments.

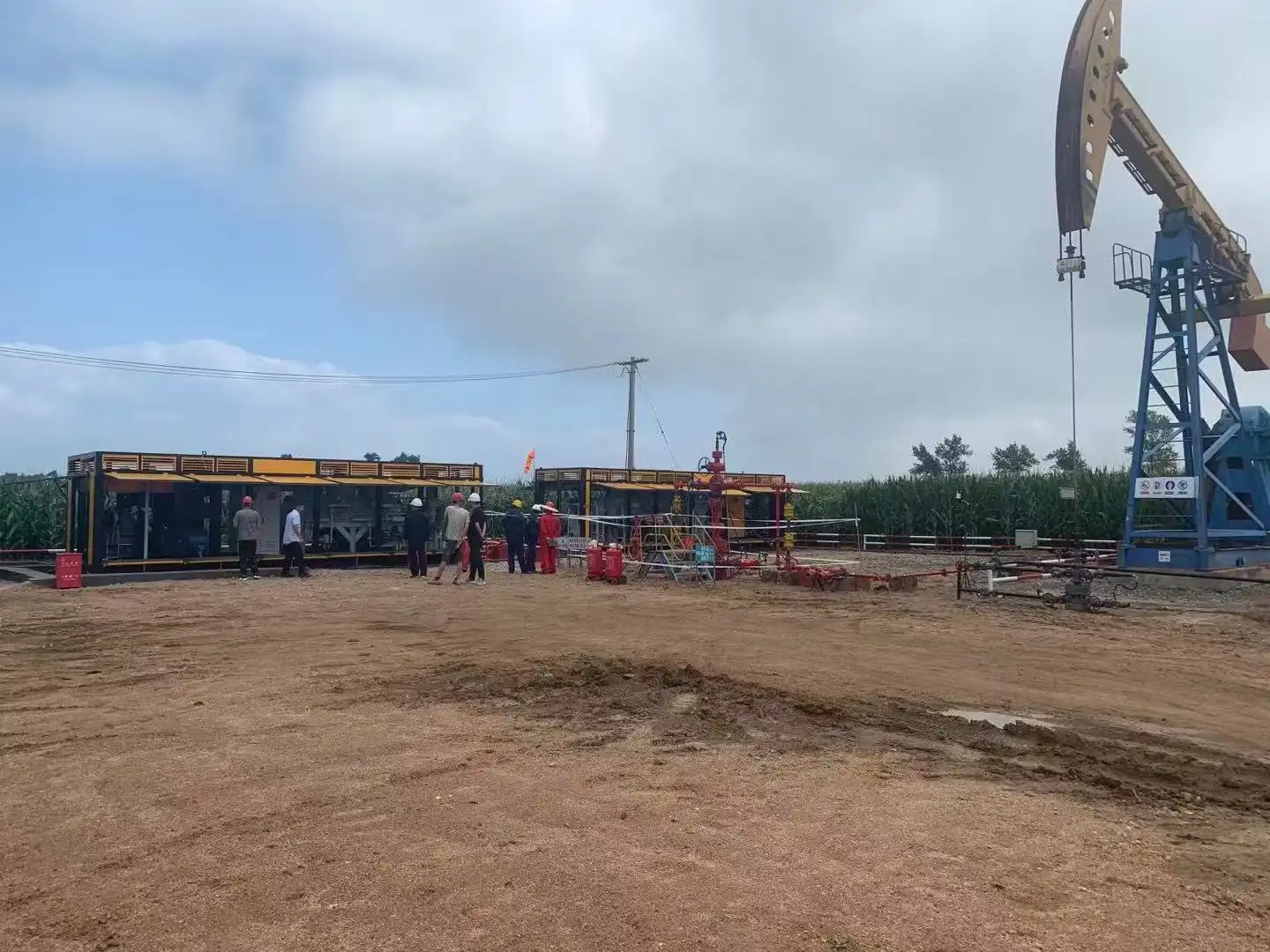

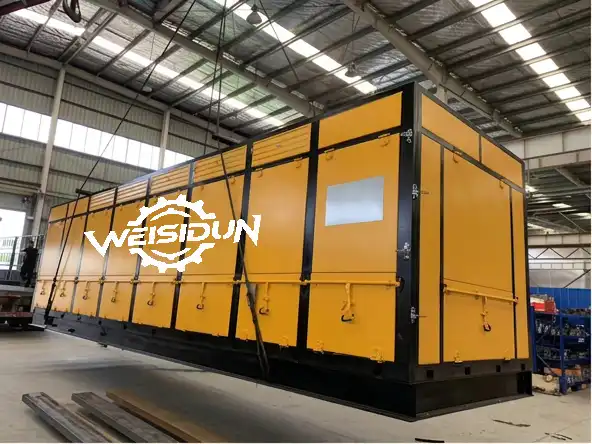

High-Pressure N2 for Pipeline Purging & EOR
Challenge: A major oilfield operator required high-volume, high-pressure nitrogen for pipeline purging and enhanced oil recovery (EOR) in a remote desert location with limited infrastructure.
Solution: weisidun deployed a 1,200 Nm³/h membrane nitrogen generator with 350 bar discharge pressure, skid-mounted for rapid installation and integrated with existing wellhead equipment.

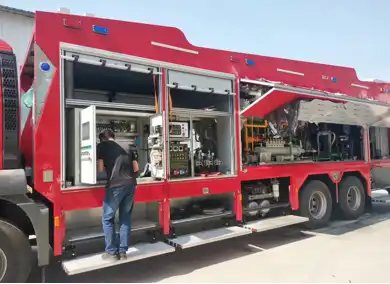

Diesel-Driven Mobile N2 Fire Suppression System
Challenge: A remote oilfield facility required a self-contained, mobile nitrogen fire suppression system capable of operating without grid power or external utilities.
Solution: weisidun supplied a trailer-mounted diesel-driven membrane nitrogen generator with 150 bar discharge pressure, delivering adjustable purity (90%-99%) for rapid inerting and fire suppression in emergency scenarios.

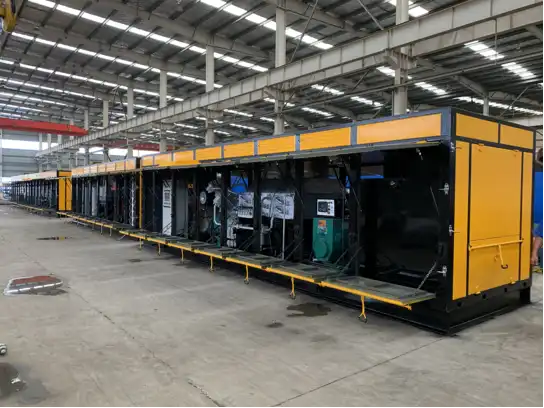

High-Capacity N2 for Well Stimulation & Pressure Maintenance
Challenge: An offshore production platform required continuous high-pressure nitrogen for well stimulation, pressure maintenance, and gas lift operations in a space-constrained marine environment.
Solution: weisidun engineered a compact 1,200 Nm³/h membrane nitrogen package with 350 bar discharge, specially configured for offshore platform installation with corrosion-resistant materials and remote monitoring capabilities.
Multi-Purpose N2 for Fracturing, Coiled Tubing & Tank Inerting
Challenge: A well servicing contractor needed a versatile high-pressure nitrogen source to support multiple applications including fracturing, acidizing, coiled tubing operations, nitrogen flooding, and storage tank/pipeline inerting.
Solution: weisidun provided a ruggedized 1,200 Nm³/h membrane nitrogen generator with 350 bar discharge, configured for rapid deployment between well sites and capable of supporting simultaneous operations.
Nitrogen Generator Applications
Across 9+ Industries Worldwide
From pharmaceutical manufacturing to oil & gas operations, weisidun nitrogen generation systems provide reliable on-site N2 for critical industrial processes.
High-purity nitrogen for GMP-compliant manufacturing. Used in blister pack sealing, API pneumatic conveying, and oxygen-sensitive raw material protection to prevent degradation, oxidation, and microbial growth.
Protective atmosphere for copper and aluminum production. Used in rod refining, oxygen-free sheet annealing, and extrusion shielding. Eliminates surface oxidation, improves metal quality, and reduces dross formation.
Inerting and purging for hazardous environments. Nitrogen purging for crude oil storage tanks and pipeline displacement to minimize fire and explosion risks. Used for leak detection and combustible gas replacement during refinery turnarounds.
Fire prevention and high-precision cutting. Inerting goaf areas to suppress spontaneous combustion in coal mines. Provides atmosphere protection for coal powder milling, and high-pressure assist gas for laser cutting to achieve oxide-free, clean edges.
Controlled atmosphere for metallurgical processes. High-purity nitrogen for bright annealing of stainless steel and copper. Used in quenching, carburizing, nitriding, and powder metallurgy sintering to prevent oxidation and decarburization.
Inert atmosphere for PCB assembly. Nitrogen for reflow soldering, wave soldering, and component storage to prevent solder oxidation and improve wetting. Essential for lead-free soldering processes and PCB blanketing to reduce defects.
Modified Atmosphere Packaging (MAP) and preservation. Nitrogen flushing extends shelf life of snacks, coffee, dairy, and prepared foods by displacing oxygen. Used for tank blanketing of edible oils, wine preservation, and beverage bottling to maintain freshness.
Inert atmosphere for metal powder bed fusion. High-purity nitrogen prevents oxidation during laser powder bed fusion (LPBF) and electron beam melting (EBM). Essential for printing reactive metals like titanium, aluminum, and magnesium alloys.
Float glass production and coating processes. Nitrogen-hydrogen mixtures protect tin baths in float glass lines. Used for purging coating chambers in low-E and solar glass production, and as cooling gas in glass tempering.
Comprehensive Warranty & Lifetime Service
Standard Warranty: 12 months from commissioning, or 18 months from contract signing — whichever comes first.
Core Components Guarantee: Pneumatic valves and molecular sieve service life ≥ 5 years. If technical specifications are not met due to quality issues within this period, weisidun will repair or replace free of charge.
Warranty Coverage: Supplier bears costs for repairing or replacing defective parts due to quality issues. Damage caused by user misoperation or improper use shall be at user's expense.
Post-Warranty: Lifelong equipment maintenance service with guaranteed spare parts supply at preferential prices.
Pre-Shipment Inspection: All equipment is thoroughly checked and tested before dispatch to ensure proper operation.
Installation & Training: weisidun engineers provide installation guidance, commissioning, and professional training — covering equipment principles, structure, daily maintenance, and troubleshooting.
24/7 Hotline Support: Engineers respond within 1 hour of receiving user requests.
Spare Parts Inventory: weisidun maintains adequate spare parts stock for user equipment types, offering concessions on supply and free technical advisory.
On-Site Service Optional: If end user requires on-site supervision, installation, commissioning or training, all costs (round-trip tickets, accommodation, meals) plus USD $500/day/engineer labor shall be covered by the user.
