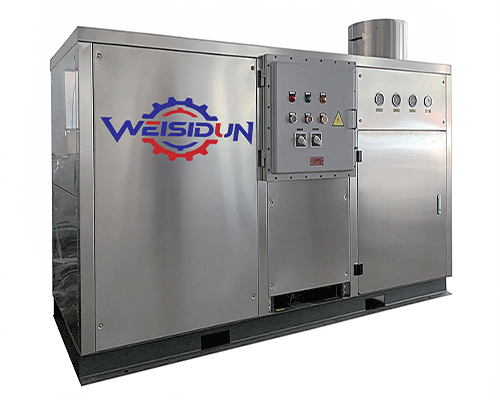

Refrigerated compressed gas dryer under atmospheric pressure
Itis suitable for allkinds of gas medium for high efficient condensation, dehydration and drying under the atmospheric pressureMainly used for biogas power generation, biogas boiler combustion, pipeline transportation and other pre installation applications.
Working Function
The content volume of the water steam in various process gas is decided by the gas temperature,on the condition to keep process gaspressure remain same,to cooling the temperature of proces gas will reduce the water steam content value,the other residual watersteam wll condensate into liquid.The refrigerated air dryer adopts this function theory with the refrigeration technology to dry gas
Technical Data
●Flow rate: 100-6000 Nm³/h
●Gas medium: Biogas, natural gas, coalbed methane (methane), hydrogen, organic waste gas, argon, etc. Explosion-proof rating: Ex IIBT4, Ex 1ICT4
●Gas inlet temperature: <45℃ (high temperature can be customized). Working pressure: 0~10MPa (container designed and manufactured according to actual pressure).
●Ambient temperature: <38℃ (air-cooled). Cooling water temperature: <32℃ (water-cooled). Cooling water pressure: 0.2~0.5MPa. Outlet dew point temperature: 2~10℃.
●Outlet temperature: Determined according to actual application process. Power supply: 220V/1Ph/50Hz, 380V/3Ph/50Hz (standard outlet power supply can be customized).

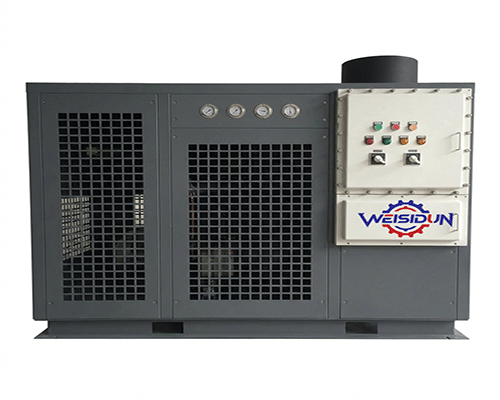

Refrigerated compressed gas dryer under high pressure
Itis suitable for all kinds of gas medium for high efficient condensation, dehydration and drying under the pressure.Mainly used for biogas purification, process gas compressor pre installation and after installation
Technical Data
●Flow: 100~30000Nm3/h
●Gas medium: Biogas, Natural gas, Coalbed gas(mash gas), Hydrogen gas, Organic waste gas, argon gas, etc
●Anti-explosion degree:Ex IIBT4 Ex IICT4
●The inlet temperature of the gas: <45°C(The high temperature can be customized)Working pressure:0~10MPa (The vessel is designed and manufactured according to the actual pressure)
●Ambient temperature: <38°C(air cooling)
●Cooling water temperature:32°C(water cooling) Cooling water pressure:0.2~0.5MPa
●Outlet dew point temperature: 2~10°C
●Outlet temperature: The outlet temperature is decided by the actual application process accordingly Power supply 220V/1Ph/50Hz 380V/3Ph/50Hz (Export standard power supply can be customized)
Working Function
The content volume of the water steam in various process gas is decided by the gas temperature,on the condition to keep process gaspressure remain same,to cooling the temperature of process gas willreduce the water steam content value,the other residual watersteam will condensate into liquid. The refrigerated air dryer adopts this function theory with the refrigeration technology to dry gas

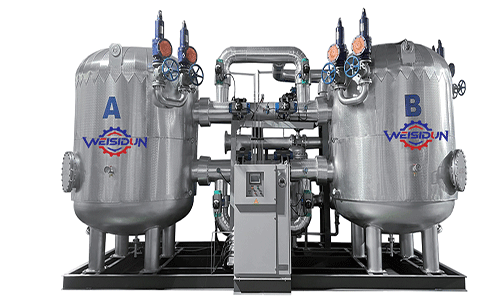

Process gas pressure swing adsorption dryer
Regeneration Way
Working Function
The adsorption equipment adopts booster circulating fan to heat regeneration air circulation and desorb the adsorbent,and thewater is separated and removed through cooling to complete regeneration of the adsorption towerto ensure automatic switchingof the double adsorption towers and the rotation of adsorbing the water in gas.When the tower A adsorption, the moisture pass through adsorption tower from the bottom up.the gas contact adsorbent fully at areasonable flow velocity,after filtration and dust removal ,the gas output of the equipmentat the same time, tower B is recycing(ycle booster fan is automatic opening), heating,cooling, water separation,cold blowing,these regeneration steps completelyremove water in the adsorbent. When the tower A adsorption saturation, PLC automatic control tower A, B,double tower isautomatic switching,double towers A,B working steps exchange, the dryer works according to the above circulated steps
Product Characteristic
●When the equipment is running,the adsorption process and regeneration process are independent running without interference,the
●regeneration process is dlosed cycle,zero discharge
●Improve the energy efficiency of air compressor ,prolong the life span of the air compressor
●Zero discharge,low noise
●Reasonable structure, excellent performance, intelligent automatic adjustment
● Energy-saving control of dew point meter
● Gas inlet & outlet temperature detection
●Unique heated regenerative and cold blowing process
Technical Data
●Flow:15~200Nm3/h
●Gas medium:Biogas, Natural gas, Coalbed gas(mash gas), Hydrogen gas, Shale gas, etc.
●Anti-explosion degree: Ex IIBT4, Ex IICT4 (Other Anti-explosion degree can be customized)
●Outlet dew point temperature: -20~-70°C
●Inlet Air temperature <38°C
●Inlet oil content:<0.01PPM
●Control mode: PLC (remote start & stop and fault output functions are available)
●Adsorbent:Activated alumina, silica gel or Molecular sieve
●Regeneration Way:blower purge heated regeneration or supercharger pressurize heated regeneration
●Cycle Period :12 hours(settable,dew point control)
●Power Supply: 380V/3Ph/50Hz(Other power can be customized)
●Installation Way: Indoors without foundation

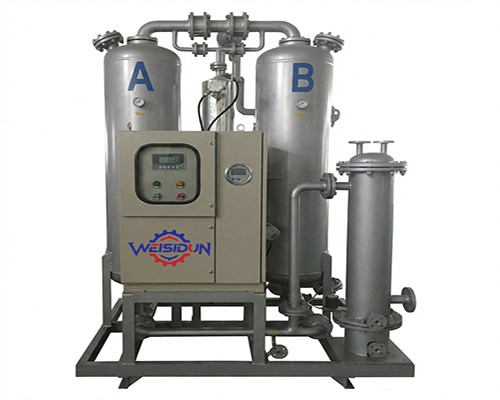

Working Function
Adsorption dryers primarily utilize the principle of physical adsorption, where the physical adsorption force is the van der Waals force (VDW). The van der Waals forces between molecules cause the adsorbate (water vapor) to penetrate into the adsorbent, resulting in a lower dew point temperature and drier gas. Based on the temperature and pressure conditions of the adsorption and regeneration processes, heatless regenerative dryers employ pressure swing adsorption (PSA) technology. Pressure swing adsorption involves adsorption (of water vapor) at high adsorption pressure, and then utilizing the heat of adsorption stored in the adsorbent during the adsorption process for desorption at a lower pressure.
Technical Data
●Gas medium:Biogas, Natural gas, Coalbed gas(mash gas), Hydrogen gas, Shale gas,etc
●Anti-explosion degree:Ex lIBT4 ExlICT4 (Other anti-explosion degree can be customized)
●Outlet dew point temperature: -20~-70°C
●Control mode:PLC,remote start & stop and fault output functions are available
●Adsorbent:Activated alumina or Molecular sieve
●Regeneration Way:Heated regeneration
●Cycle Period :>8 hours(dew point control)
●Power Supply:220V/1Ph/50Hz,380V/3Ph/50Hz(Other power can be customized)
●Installation Way: Indoors without foundation

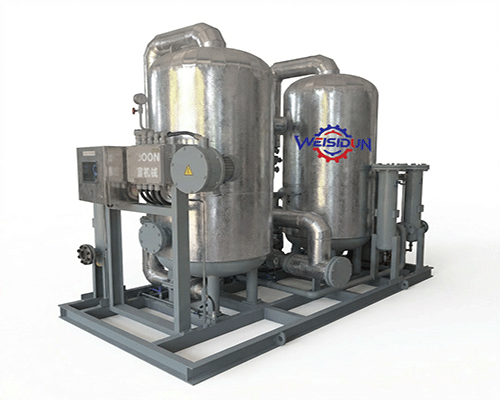

Product Introduction
Energy saving comprossion heat regenerative adsorption dryer is that makes use of high temperature of the original gas to heatregeneration desiccant directly, to achieve zero energy consumption in the adsorbent regeneration process, it is preferred modelfor the gas to obtain low dew point.
weisidun regenerative adsorption dryer is optimized molding with the advanced technology and rich practical experience.Adoptingthe dual coolers solution with the energy saving design. According to characteristics of the high temperature desorption and lowtemperature adsorption,making use of high temperature gas heat to heat regeneration adsorbent directly, the adsorbent is fullyregenerated,Recycling usemaking use of double coolers to cool the high temperature gas sufficiently to low temperature ofadsorption demand, maximize improve the absorption performance of the adsorbent. At the same time, according to the analysisof fluid mechanics, the reasonable design of the pipeline is fully considered, compressed gas resistance is reduced, and thepressure drop is fuly reduced. Linuo adsorption dryer also improved the internal design of the adsorption tower, and appliedpatent for air diffuser structure, and fully guarantee the sufficient contact time of compressed gas and adsorbentcompletelyprevent compressed gas from tunnel effect in the adsorption tower, solves the problem of instability of dew point and drift defectsso that the equipment achieve the stability of continuous working at finished gas dew point.
Below parameters should be confirmed for type selection
●Gas Pressure : Maximum pressure, Minimum Pressure
●Process gas flow capacity:Nm3/h, Nm3/min
●The gas temperature: °C
●The gas composition,gas proportion,and requirements of gas treatment
Product Characteristic
●When the equipment is running, the adsorption process and regeneration process are independent running without interference
the regeneration process is closed cycle,zero discharge
●Improve the energy efficiency of air compressorprolong the life span of the air compressor
● Zero discharge,low noise
●Reasonable structure,excellent performance, intelligent automatic adjustment
●Energy-saving control of dew point meter
●Gas inlet & outlet temperature detection
●Unique heated regenerative and cold blowing process
●Anti-explosion degree: Ex IIBT4, Ex IICT4 (Other Anti-explosion degree can be customized)

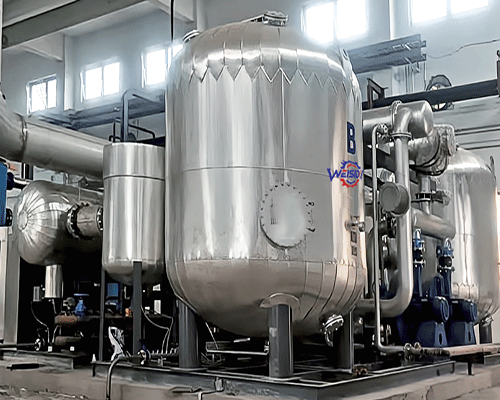

CO2 desiccant Dryer
The carbon dioxide deep dehydration desiccant dryer is a special high-efficiency and energy-saving dehydration device for CCUSngineering prjects. In line with the design concept of energy saving and consumption reduction, the high requirements after carbondioxide dehydration, the dehydration purpose is achieved by adopting TSA process or TPSA process in the desorption process
Technical Data
● Gas Medium: Biogas, natural gas, coalbed methane, hydrogen, shale gas, etc.
● Outlet Dew Point: -20 to -70°C
● Inlet Gas Temperature: ≤ 38°C
● Inlet Oil Content: < 0.01 PPM
● Control Method: PLC remote control
● Regeneration Method: TSA or TPSA
● Cooling Water Temperature: 2~32°C, 0.2~0.5MPaG
● Power Supply: 380V/50Hz/3-phase + N + PE (other power supplies can be customized)
● Pressure Gauge: 0.6~1.0MPaG
● Installation: Indoor or outdoor on a level concrete surface; a rain cover is required for outdoor installation.
Product Characteristic
●When the equipment is running, the regeneration is zero ormicro-emission, and a variety of process are available
● Sufficient desiccant adsorption margin, suitable forfluctuating gas conditions.
●Low noise
●Reasonable structure, double-tower, three-tower ormulti-tower design, excellent performance, intelligentautomatic adjustmentautomatic adjustment
●Energy-saving control of dew point
●Temperature detection of gas inlet and outlet
●Unique heated regenerative and cooling process

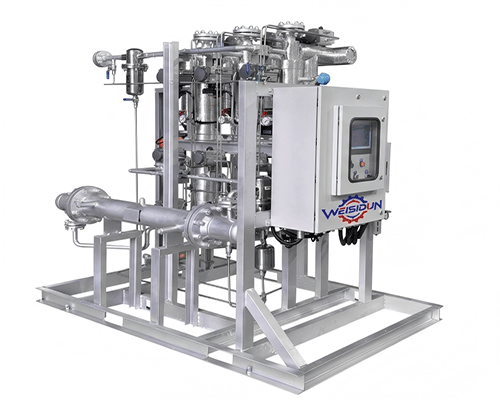

Energy-efficient hydrogen deep dehydration dryer
The energy-saving hydrogen deep dehydration dryer adopts the process principle of adsorbent dehydration, using the originalworking conditions of the gas and advanced control system, in the process of realizing the adsorbent regeneration process zero gasconsumption or heat recovery or intelligent control of the adsorption time, etc, to achieve energy- saving operation.Our hydrogen desiccant dryer is optimized by advanced technology and rich practical experience. Using the design conditions of theraw material gas, according to the high-temperature desorption and the low-temperature adsorption of the adsorbent, the adsorbentcan be fuly adsorbed and desorbed for recyded usage. At the same time, according to the analysis of fuid mechanics, the reasonabledesign of the pipeline is fully considered, the gas resistance is reduced, and the pressure drop is fully reduced. Hangzhou LinuoDesiccant Dryer has also improved the internal design of the adsorption tower, and applied for the patented structure of the airdiffuser, which fully ensures sufficient contact time between the gas and the adsorbent Completely solve the problems of tunnel effectand insufficient adsorption, solve the defects of unstable dew point and drift are eliminated and achieve the continuous operation ofthe equipment with the stable outlet gas dew point.
Product Characteristic
●Zero emissions when the equipment is operating
●Sufficient desiccant adsorption margin, suitable for fluctuating gas conditions
●Low noise
●Reasonable structure, double-tower, three-tower or
multi-tower design, excellent performance
● Suitable for continuous operation
●Temperature detection of gas inlet and outlet
● Unique heating regeneration and cooling process
● Long adsorbent life, life > 3 years
●Stable dew point of the gas outlet
Technical Data
●Gas Medium: Biogas, Natural gas, Coalbed methane (Mash gas), Hydrogen gas, Shale gas, etc.
●Anti-explosion Degree: Ex II CT4 (Other anti-explosion degree can be customized)
●Inlet Gas Pressure: 0.2 ~ 9.9MPa
●Outlet Dew Point: -20°C ~ -70°C
●Control Model: PLC with remote control
●Regeneration: TSA or TPSA
●Cooling Water Temperature: 2~32°C 0.2~0.5MPaG
●Power Supply: 380V/50Hz/3Ph+N+PE (Other power can be customized)
●Pressure Meter: 0.6~1.OMPaG
●Installation: Indoors or Outdoors with rainproof awning on flat concrete ground
