Why Choose Our Gas Equipment?
On-Site & On-Demand:
Eliminate the cost and hassle of external gas supply.
Energy & Cost Efficient:
Advanced technologies designed to optimize your operational expense.
Turnkey Project Support:
From design, installation to maintenance.
End-to-End Solutions:
From gas generation,purification, drying toliquefaction.

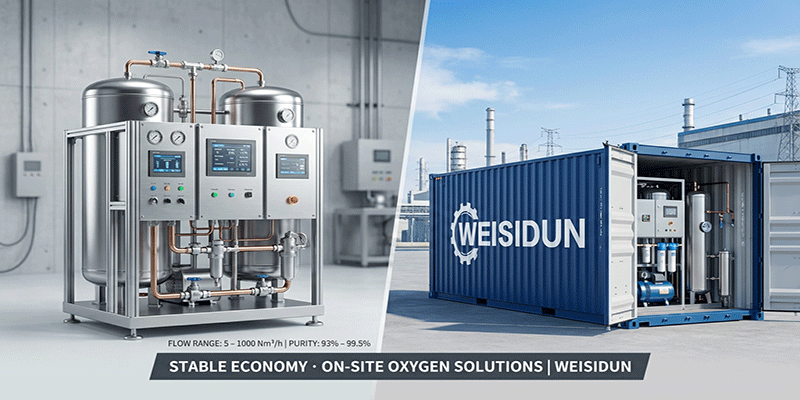

Oxygen Generator System
Key Technical Parameters:
- Flow Range: 5 – 1000 Nm³/h
- Purity: 93% – 99.5%
Main Applications:
Industrial Combustion Assistance,Cutting and Welding,Medical Oxygen Supply,Wastewater Treatment,Oxygen-Enriched Aquaculture
Nitrogen Generator System
Technology A:
PSA Nitrogen Generation System
Principle: Pressure Swing Adsorption
Flow Range: 5 – 1000 Nm³/h
Purity: 99% – 99.9995%
Features: Extremely high purity, suitable for applications with stringent requirements regarding oxygen and moisture residue.
Technology B:
Membrane Separation Nitrogen Generation System
Principle: Membrane Separation
Flow Range: 60 – 6000 Nm³/h
Purity: ≥ 95%
Features: Simple structure, easy maintenance, suitable for high flow rate and medium purity applications.
Core application areas of nitrogen systems:
Oil and Gas: Oilfield gas lift, drilling, pipeline purging, nitrogen displacement, etc.
Chemicals and Manufacturing: PET bottle blow molding, chemical protection, laser cutting.
Food and Pharmaceuticals: Nitrogen filling for food packaging (extending shelf life), atmospheric protection in pharmaceutical production.
Others: Power equipment protection, shipbuilding, aerospace, and military research.
Gas Purification & Drying Equipment
Key Parameters:
Processing Flow Range: 15~3000m3/min
Operating Pressure: 0.2~10Mpa
Outlet Pressure Dew Point:-20~ -70°C （can custom made )
Energy-Saving Design (e.g. zero air consumption, waste heat regeneration, etc.)
Main Applications:
Used together with air compressor systems, nitrogen generators and oxygen generators. Widely applied in spraying, pneumatic control, instruments and meters, electronics, lithium battery production and other fields.
Gas Liquefaction Equipment
Key Parameters:
Liquid Nitrogen Output: 0.3L/h ~ 2000L/h
Liquid Nitrogen Purity: ≥ 99%
Nitrogen gas in the air is separated and liquefied into liquid nitrogen (LN2), providing an extremely low-temperature cold source and a high-density storage method, suitable for occasions requiring large-scale or distributed use of liquid nitrogen.
Main Applications:
1.Cryogenic Cold Chain: Food quick-freezing, cold storage and transportation of biological samples.
2.Industrial Cryogenic Treatment: Deep cryogenic treatment of metal materials to improve performance.
3.Scientific Research & Medical: MRI (Magnetic Resonance Imaging), low-temperature physics experiments, biological storage.
4.Chemical & Electronics: Cooling in chemical processes, semiconductor manufacturing.
Core Advantages：
Self-sufficiency: Free from restrictions of external liquid nitrogen suppliers.
Cost control: Overall cost is generally lower than purchasing over the long term.
Supply security: Ensures uninterrupted liquid nitrogen supply for critical processes or R&D.
